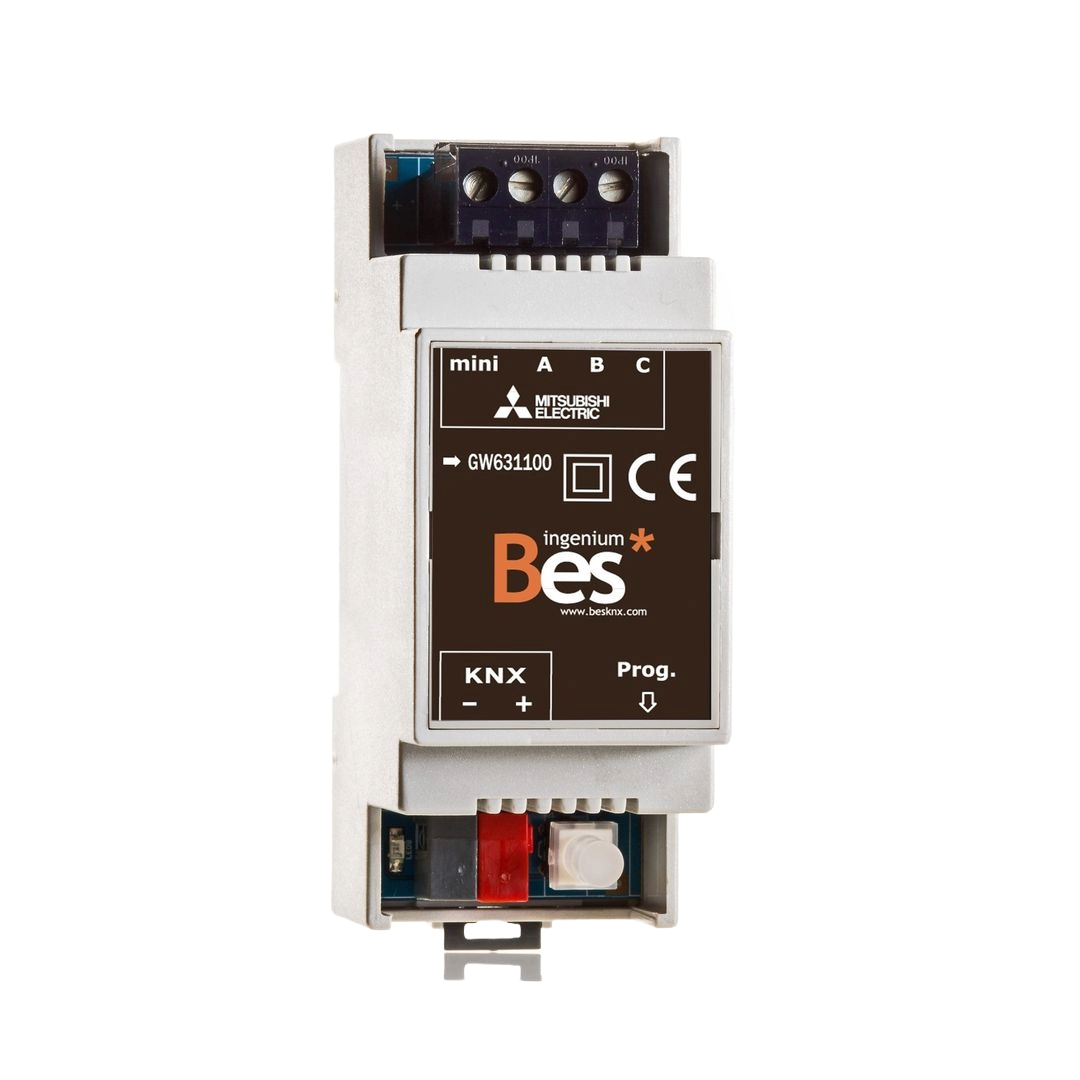

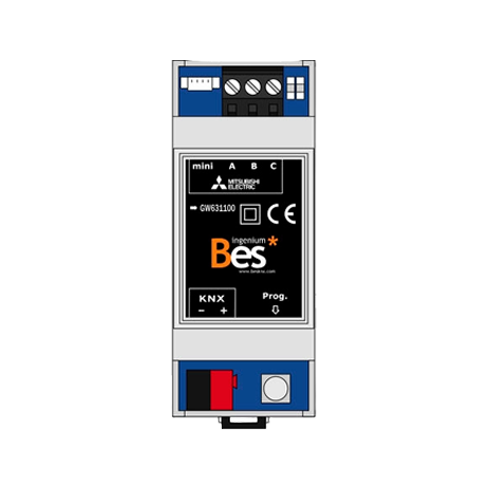

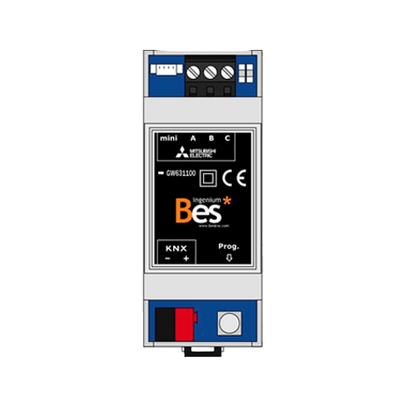

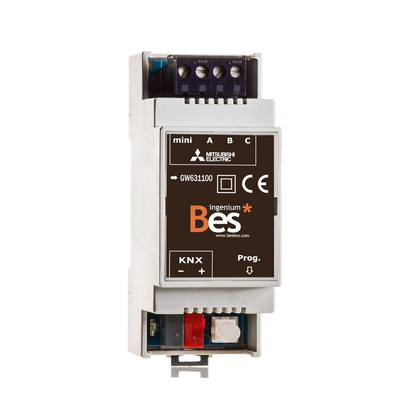

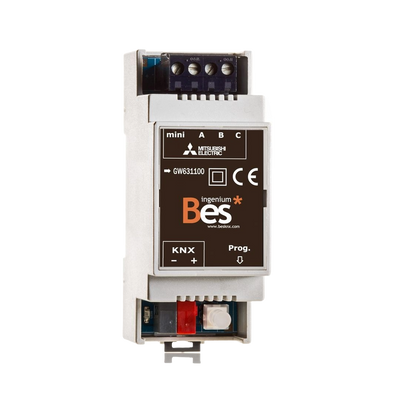

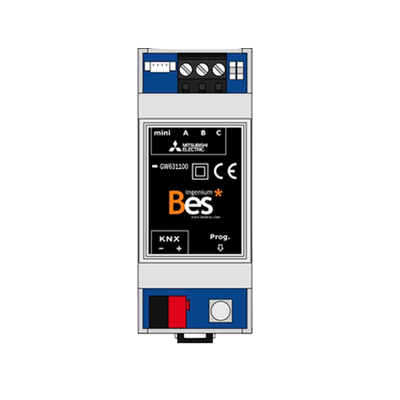

KNX - MITSUBISHI HVAC gateway - DIN format

Key Features:

• Seamless Integration: Directly connects to Mitsubishi air conditioning units via the CN105 terminal, enabling integration with KNX home automation systems for streamlined control.
• Comprehensive HVAC Control: Offers control over setpoint temperature, measured temperature, five operation modes (cooling, heating, ventilation, drying, and automatic), and three fan speeds (low, medium, high).
• Flexible Installation Options: Provides two connection methods—via a 4-wired mini-connector or a 3-wire screw terminal—ensuring versatile installation suited to different needs and configurations.

Product Description:

GW631100 Mitsubishi-KNX Gateway: Enhance your smart home system with the GW631100 Mitsubishi-KNX Gateway, designed for seamless integration of Mitsubishi air conditioning units with KNX automation networks. This advanced gateway allows precise control over a single indoor unit, managing functions such as setpoint temperature, measured temperature, operational modes (cooling, heating, ventilation, drying, and automatic), and adjustable fan speeds. Installation is flexible, offering both a 4-wired mini-connector and a 3-wire screw terminal option, making it adaptable to various setups. The GW631100 is compact and energy-efficient, drawing power directly from the KNX bus and mounting easily onto a DIN rail. Ideal for residential or commercial environments, this gateway ensures reliable climate control and enhanced comfort, all while maintaining energy efficiency.
