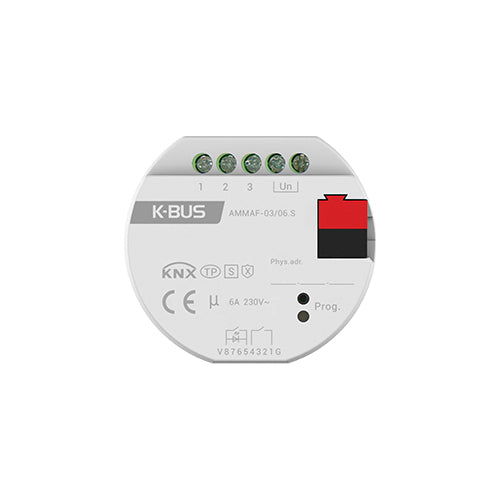

KNX Multi-function Actuator Mini 3-Fold, 6A

Key Features

• 3-Channel Multifunction Design: Three 6A channels for switching, shutter, valve, heating, or fan control applications, with a combined total current capacity of 12A.

• Flexible Control Functions: Supports key KNX functions including switching, status feedback, 8-scene control, time scheduling, preset modes, and logic operations for comprehensive automation.

• Configurable Inputs and Outputs: Features 4-fold inputs and 4-fold input/LED outputs, each individually configurable for flexible system integration; supports dry contact input and 5V/12V DC LED output (cable length ≤10 m).

• Secure KNX Communication: Incorporates KNX Data Secure to ensure encrypted, tamper-proof communication across the KNX network.

• Compact Flush-Mounted Design: Designed for easy installation in standard 86×86 mm or Ø60 mm German wall boxes, ideal for space-limited applications.

• Low Power Consumption: Operates directly via the KNX bus (18 mA), eliminating the need for an external power supply and simplifying installation.

Product Description

The GVS KNX Multifunctional Actuator with Secure (3-Fold, 6A, Flush Mounted) is a compact yet powerful control solution designed for versatile automation applications. Each of its three 6A channels can be configured for various functions, including switching, shutter, valve, heating, or fan control, providing exceptional flexibility within a small form factor.

Fully compatible with KNX systems, the actuator supports advanced features such as status response, scene control, logic operations, and time scheduling. The integrated 4-fold inputs and 4-fold input/LED outputs allow for highly adaptable setups, supporting dry contact sensors and 5V/12V LED outputs for visual feedback or status indication.

Equipped with KNX Data Secure, it guarantees encrypted communication and safe data transmission throughout the KNX network. Designed for flush-mounted installation in 86×86 mm or German Ø60 mm wall boxes, the device provides a discreet yet powerful solution for modern automation environments. Drawing only 18 mA from the KNX bus, the GVS KNX Multifunctional Actuator with Secure combines flexibility, security, and efficiency in a compact professional-grade package.
