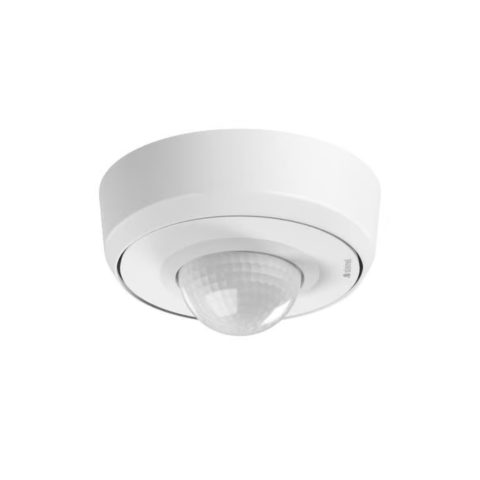

MD-24 ECO KNX AP SURFACE SINGLE

Key Features:

• 360° infrared motion detection: Covers a wide area with a motion detection range of up to Ø 24 m and a presence detection range of Ø 7.5 m, ideal for large spaces.
• KNX integration: Offers intelligent control over lighting with constant-lighting control, day/night switching, and sabotage protection.
• Easy installation: Magnetic holder allows for quick and secure installation, with configuration via ETS software or Smart Remote app.

Product Description:

The Steinel MD-24 KNX Motion Detector is designed to meet the needs of commercial spaces such as offices, meeting rooms, and passageways. With a 360° detection angle and a motion detection range of up to Ø 24 m, it ensures reliable coverage even in larger areas. Additionally, its presence detection function, covering up to Ø 7.5 m, makes it an ideal solution for efficient building automation.

This motion detector integrates seamlessly with KNX systems, providing energy-saving control over lighting and HVAC systems. It offers advanced features such as constant-lighting control, day/night switching, and sabotage protection, making it perfect for public and high-traffic areas. Installation is simple with the magnetic holder, and programming can be easily managed via the Smart Remote app or ETS software.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 24 m (452 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting control
• Lighting Channels: 1 channel
• IP Rating: IP54 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: Surface-mounted, ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 15 mA
