MD-24 ECO KNX DE RECESSED - Multipack 48

This product comes in multipack of 48 units

Key Features:

• 360° infrared motion detection: Provides reliable detection with a range of up to Ø 24 m for motion and Ø 7.5 m for presence detection, ideal for office spaces and public buildings.
• KNX integration: Full control over lighting systems with constant-lighting control, logic gate functions, day/night switching, and sabotage protection.
• Easy installation: Features a magnetic holder for quick installation and configuration via ETS software or Smart Remote app.

Product Description:

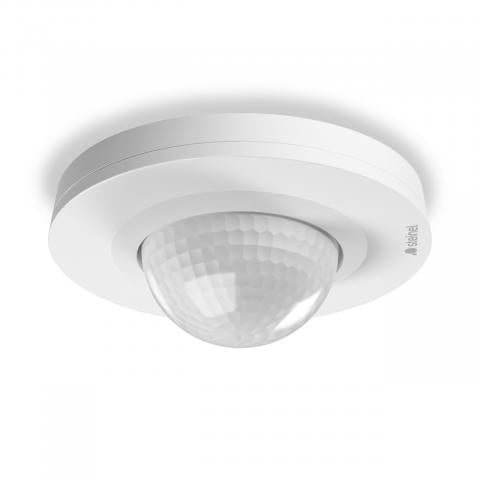

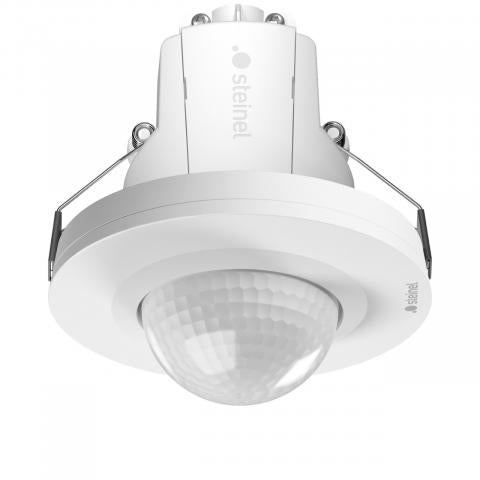

The Steinel MD-24 KNX Motion Detector is designed for commercial and public buildings, offering superior motion and presence detection capabilities. With a 360° detection angle, it covers up to Ø 24 m for motion and Ø 7.5 m for presence, making it perfect for offices, meeting rooms, and passageways.

This motion detector integrates seamlessly with KNX systems, providing intelligent control over lighting and environmental systems. It includes advanced features such as constant-lighting control, day/night switching, and sabotage protection. The detector is easy to install thanks to its magnetic holder and can be configured remotely through the Smart Remote app or via ETS software, making it a versatile choice for building automation.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 24 m (452 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting control
• Lighting Channels: 1 channel
• IP Rating: IP20 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
