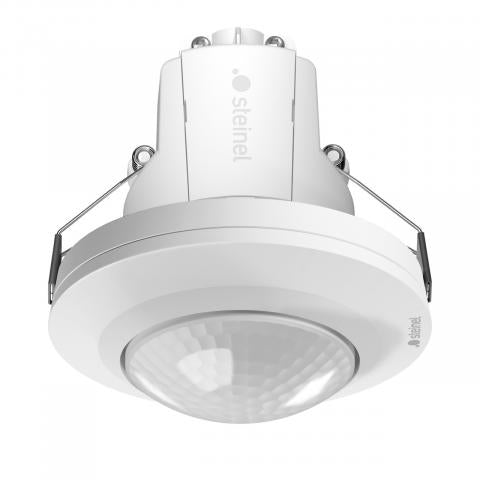

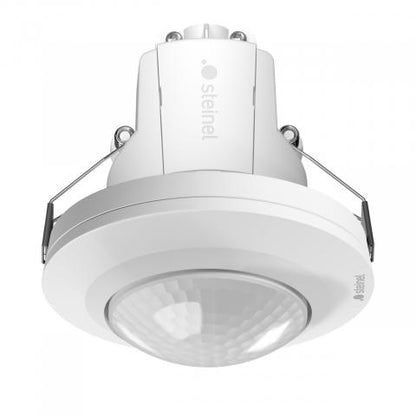

MD-8 ECO KNX DE RECESSED - Multipack 48

This product comes in multipack of 48 units

Key Features:

• 360° infrared motion detection: Optimised for indoor spaces with a motion detection range of Ø 8 m and presence detection up to Ø 7.5 m.
• KNX integration: Provides intelligent control over lighting systems with features like day/night switching, making it ideal for offices and meeting rooms.
• Easy installation: Magnetic mounting bracket and configuration via ETS software or Smart Remote app for fast and secure setup.

Product Description:

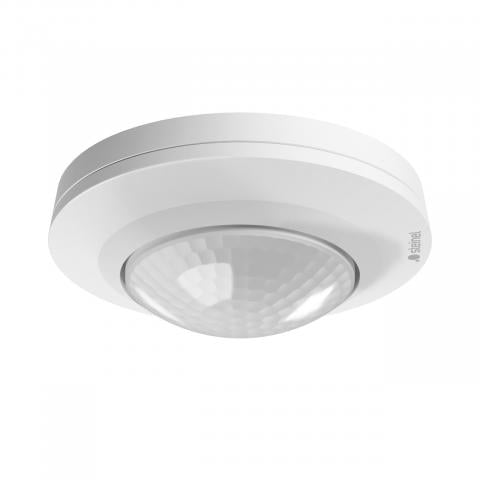

The Steinel MD-8 KNX Motion Detector is a versatile solution for motion detection in commercial environments such as offices, passageways, and meeting rooms. With its 360° detection angle, it provides up to Ø 8 m motion detection and Ø 7.5 m presence detection, ensuring accurate performance in various settings.

Fully compatible with KNX systems, this motion detector offers smart lighting control, including day/night switching and the ability to integrate seamlessly with building automation. It can be configured remotely via ETS software or Smart Remote, making installation and operation straightforward. Its in-ceiling design and IP20 rating make it suitable for a range of indoor environments, providing a balance between functionality and ease of use.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 8 m (50 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting control
• Lighting Channels: 1 channel
• IP Rating: IP20 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Day/night function, masking out individual segments, logic gate interconnection
• Operating Voltage: KNX bus-powered, 15 mA
