MULTISENSOR AEROSOL KNX

Key Features:

• Comprehensive environmental monitoring: Measures temperature, CO2 levels, air pressure, humidity, VOC (volatile organic compounds), and light levels for optimal indoor air quality.
• Infection risk detection: Evaluates air quality to determine the potential risk of infection, providing valuable data for healthy indoor environments.
• KNX integration: Fully compatible with KNX systems, offering control over HVAC systems and monitoring for air quality, lighting, and comfort.

Product Description:

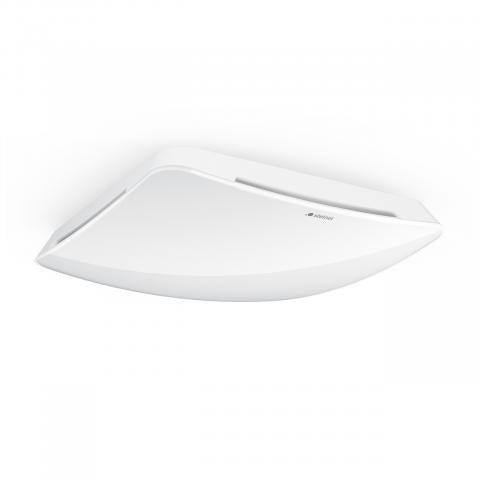

The Steinel Multisensor Aerosol KNX is an advanced environmental sensor designed to enhance indoor air quality and comfort in professional spaces. This multisensor continuously monitors CO2 concentration, temperature, air pressure, humidity, VOCs, and light levels, providing vital information for building management systems. It also identifies the potential risk of infection based on air quality parameters, making it ideal for classrooms, conference rooms, offices, and other indoor environments.

Fully integrated with KNX systems, the Multisensor Aerosol offers intelligent control over HVAC systems, ensuring optimal air quality and comfort. This sensor can be configured via ETS software or Bluetooth, allowing for easy installation and adjustment. Its discreet in-ceiling installation and advanced sensing capabilities make it an essential tool for modern building automation focused on health, safety, and efficiency.

Key Specifications:

• Detection Technology: CO2, air pressure, air humidity, temperature, VOC, and light sensors
• Dimensions: 33 x 123 x 123 mm
• Mounting Height: Optimal at 2.8 m
• Integration: KNX-compatible for HVAC and air quality control
• Lighting Channels: No
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable up to 255 minutes
• Basic Light Level Function: No
• Operating Voltage: KNX bus-powered, 30 V (15 mA)
• Power Consumption: 0.5 W
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic
• Additional Features: Risk of infection detection, air quality metrics, day/night function, dewpoint, temperature output, logic gate interconnection
