PBlock 2 Button White
PBlock 2 Button White

PBlock 2 Button White

SKU : MM2-PB-3300-111-1WH

Vendor: Brand : MM

Key Features

  • • Two-Button Control: Provides intuitive up and down operation.

    • Flexible KNX Functions: Supports lighting, shading, scenes and values.

    • RGB LED Feedback: Two LEDs per button display clear status information.

    • Individual Configuration: Each side can perform a different function.

    • Frameless Design: Creates a clean, contemporary wall finish.

    • Simple Installation: Fits a standard round wall box.

Trade pricing and ordering are available to registered partners.

Login to order Apply for Partner Access
Building or renovating a home? We’ll connect you with an integrator near you Specifying for a project? Talk to our team about the full range

Description

This two-button KNX keypad combines familiar wall-switch operation with flexible control of lighting, shading and other automated building functions. Its compact design makes it suitable for residential, hospitality and commercial applications.

Each button can be configured through ETS for switching, dimming, blind and shutter control, value sending, scene recall and scene storage. Independent button programming allows the keypad to be adapted to the requirements of each room, from simple lighting control to multiple coordinated KNX functions.

Two RGB LEDs on each button provide configurable visual feedback for operating states, active scenes or selected functions. Different colours can help users identify commands and understand the current system status.

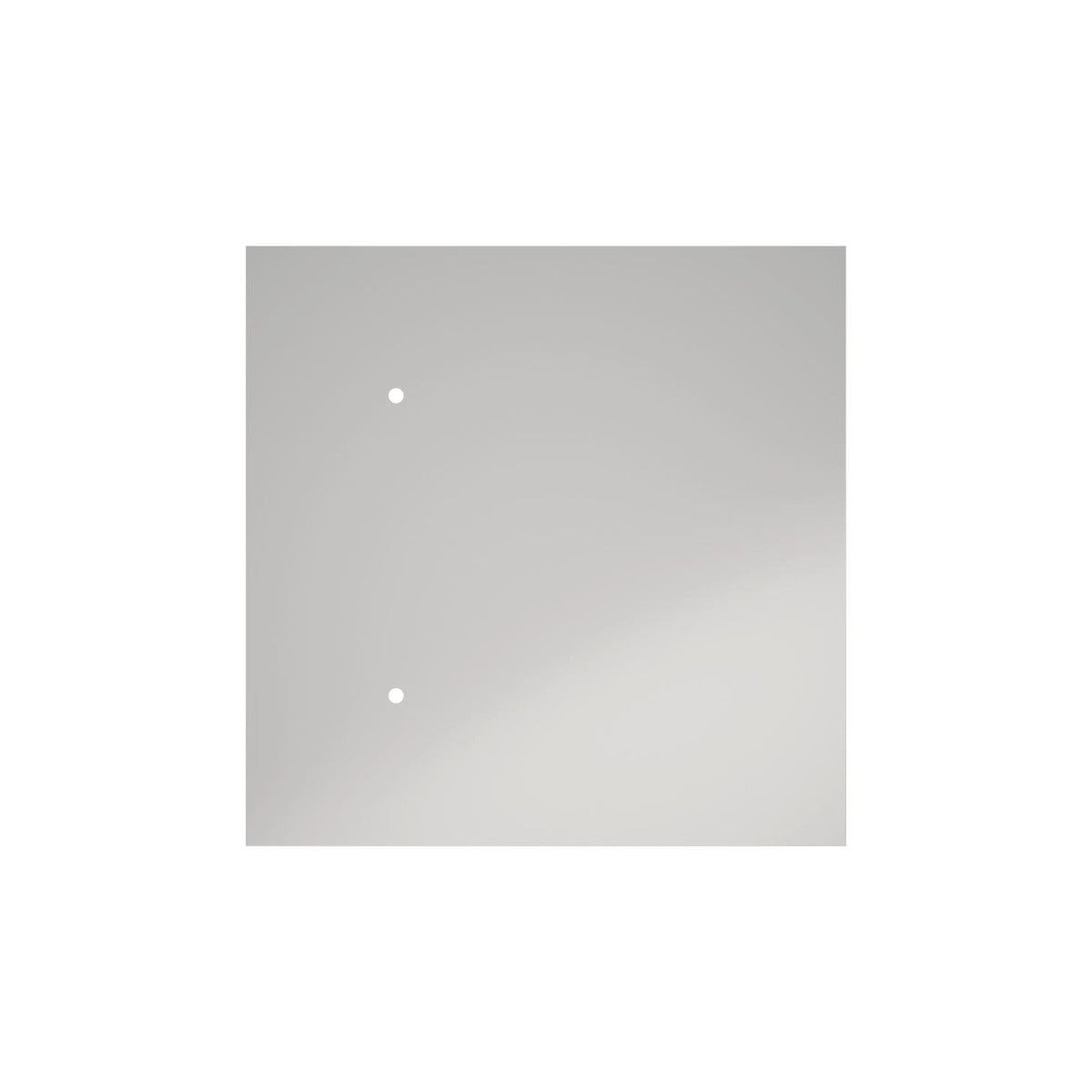

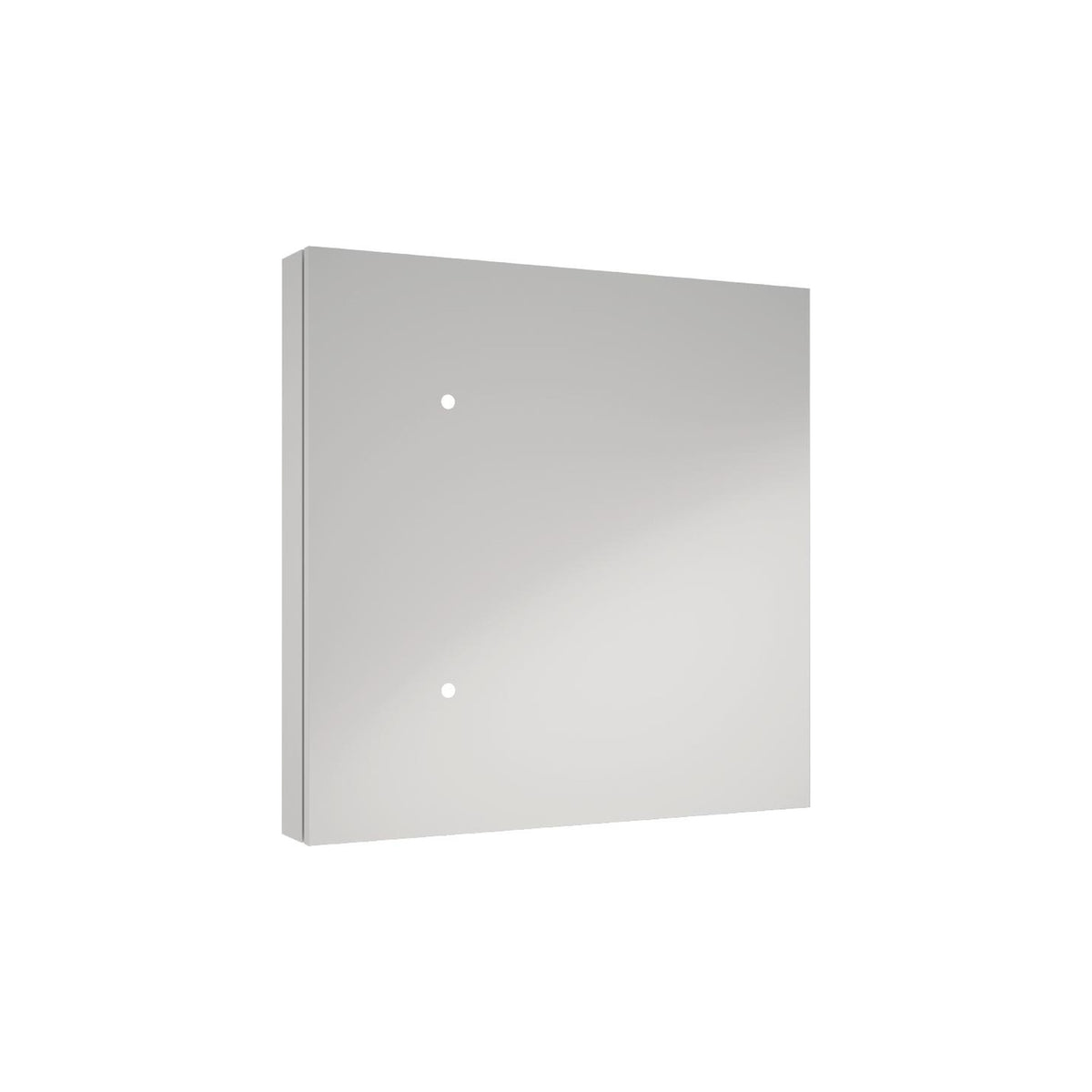

The frameless white housing provides a clean, contemporary finish and measures 80 × 80 × 35 mm. An included mounting adapter allows installation into a standard round wall box, supporting straightforward integration into new or existing KNX projects.

Operating Manual Ets Data sheet
