PBlock - 4 Button White
PBlock - 4 Button White

PBlock - 4 Button White

SKU : MM2-PB-1100-111-1WH

Vendor: Brand : MM

Key Features

  • • Four-Button Control: Four individually configurable KNX buttons.

    • Flexible Operation: Controls lighting, dimming, shading and scenes.

    • Independent Functions: Assign a different action to each button.

    • RGB LED Feedback: Configurable LEDs display status and notifications.

    • Frameless Design: Creates a clean, contemporary wall finish.

    • Simple Installation: Includes an adapter for round wall boxes.

Trade pricing and ordering are available to registered partners.

Login to order Apply for Partner Access
Building or renovating a home? We’ll connect you with an integrator near you Specifying for a project? Talk to our team about the full range

Description

This four-button KNX keypad provides flexible control of lighting, shading and other automated building functions through a compact wall-mounted interface.

Each button can be configured independently through ETS for functions including switching, dimming, blind and shutter control, value sending, scene recall and scene storage. This allows the keypad to support simple individual commands or coordinated functions tailored to the requirements of each room.

Two RGB LEDs on each button provide configurable visual feedback for operating states, active scenes and selected functions. Different colours can be used to make commands easier to identify and provide clear system status information.

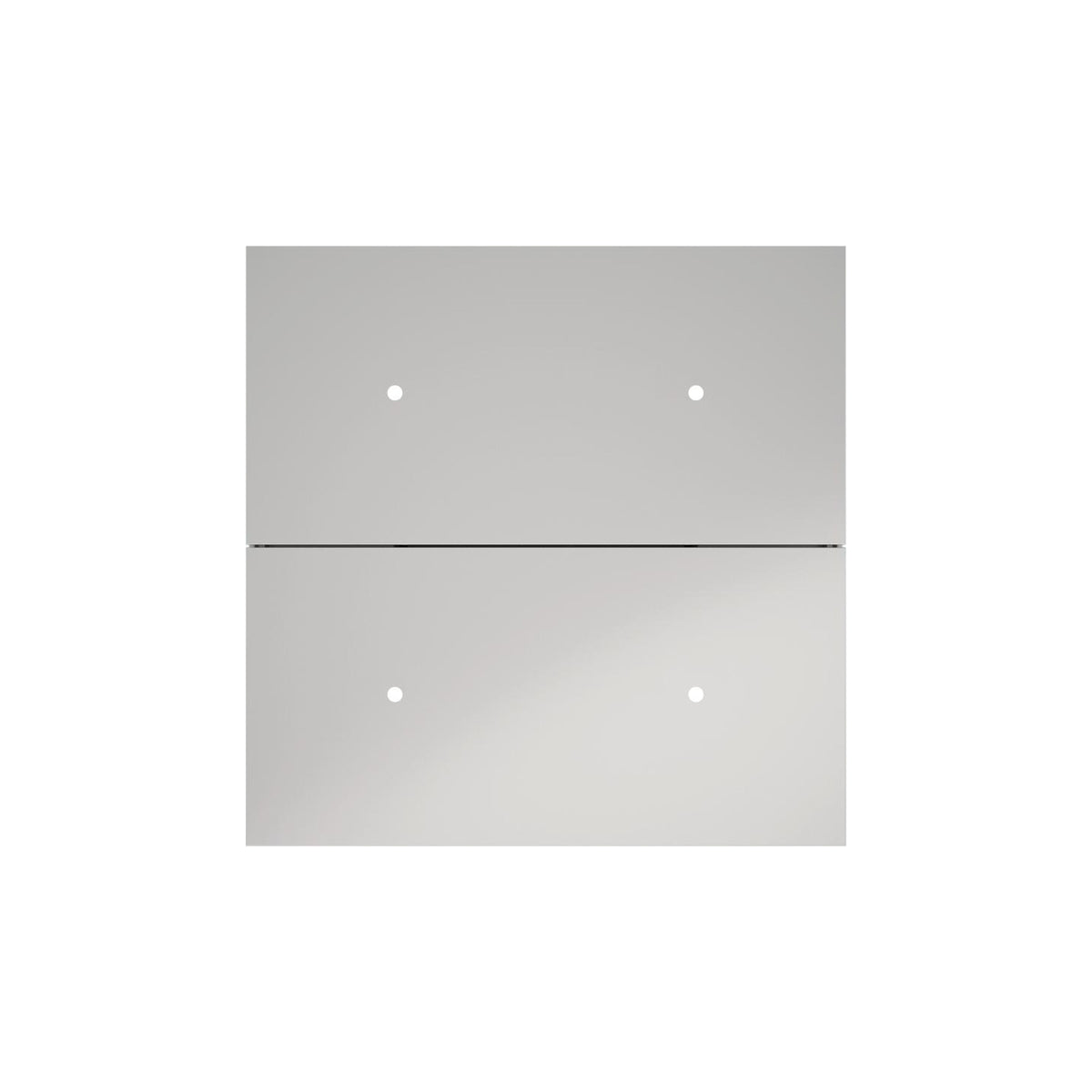

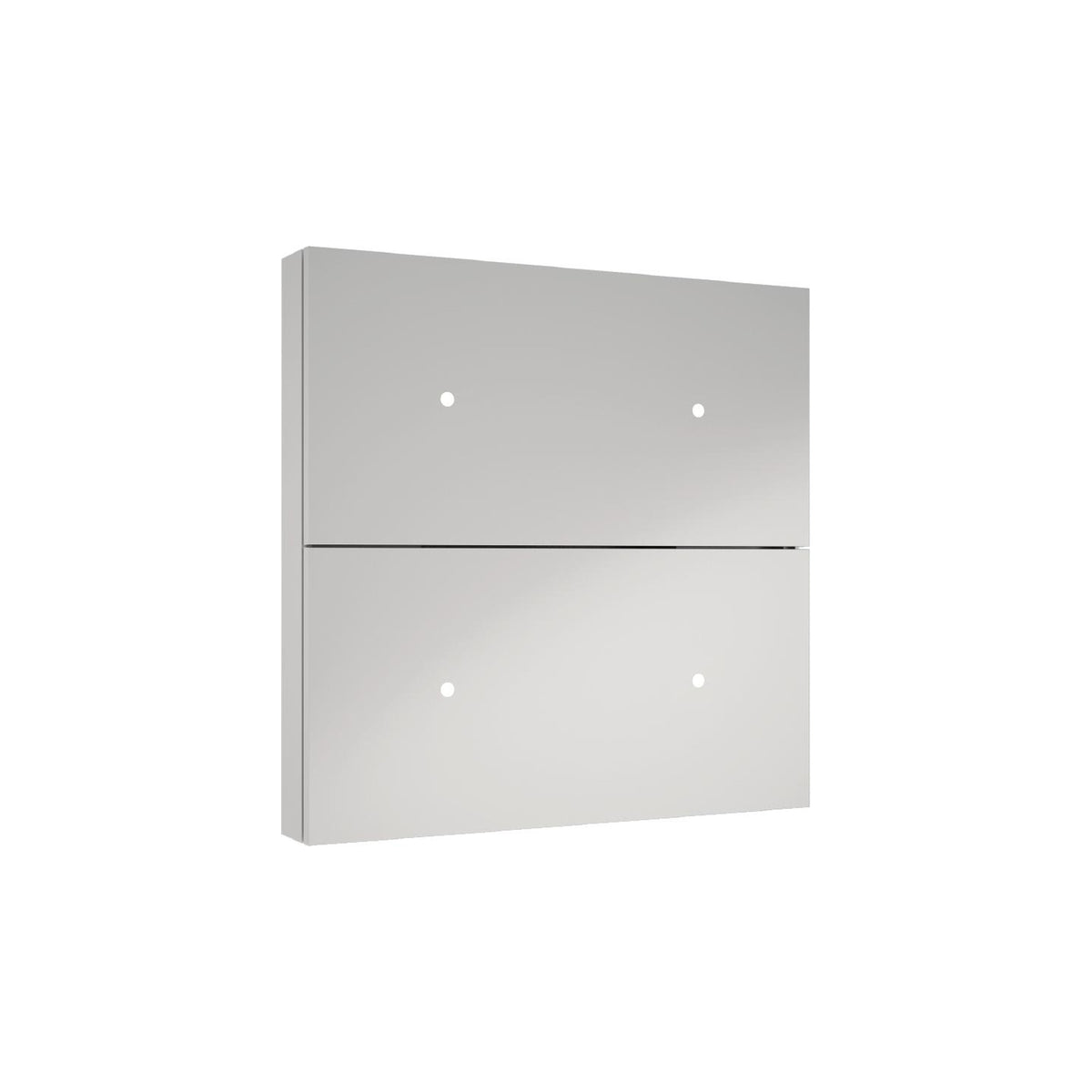

The frameless white housing measures 80 × 80 × 35 mm and complements modern residential, hospitality and commercial interiors. An included mounting adapter enables installation into a standard round wall box, supporting straightforward integration into new or existing KNX projects.

Operating Manual Ets Data sheet
