Pblock - Touch Dispay, Thermostat, 2 Button White
Pblock - Touch Dispay, Thermostat, 2 Button White

Pblock - Touch Dispay, Thermostat, 2 Button White

SKU : MM2-PB-D100-112-1WH

Vendor: Brand : MM

Key Features

  • • Touch Climate Display: View and adjust room temperature settings.

    • Two-Button Control: Operates independently configured KNX functions.

    • Heating and Cooling: Integrated thermostat manages both operating modes.

    • Fan Coil Control: Supports automatic or manual fan-speed adjustment.

    • Flexible KNX Functions: Controls lighting, shading, values and scenes.

    • RGB LED Feedback: Configurable lighting clearly indicates button status.

Trade pricing and ordering are available to registered partners.

Login to order Apply for Partner Access
Building or renovating a home? We’ll connect you with an integrator near you Specifying for a project? Talk to our team about the full range

Description

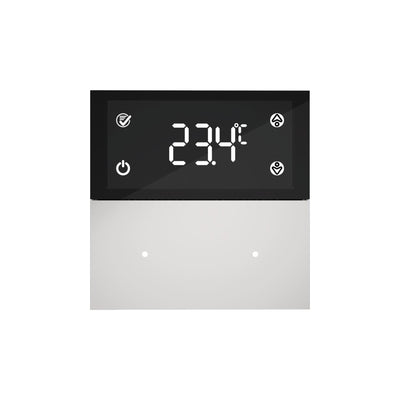

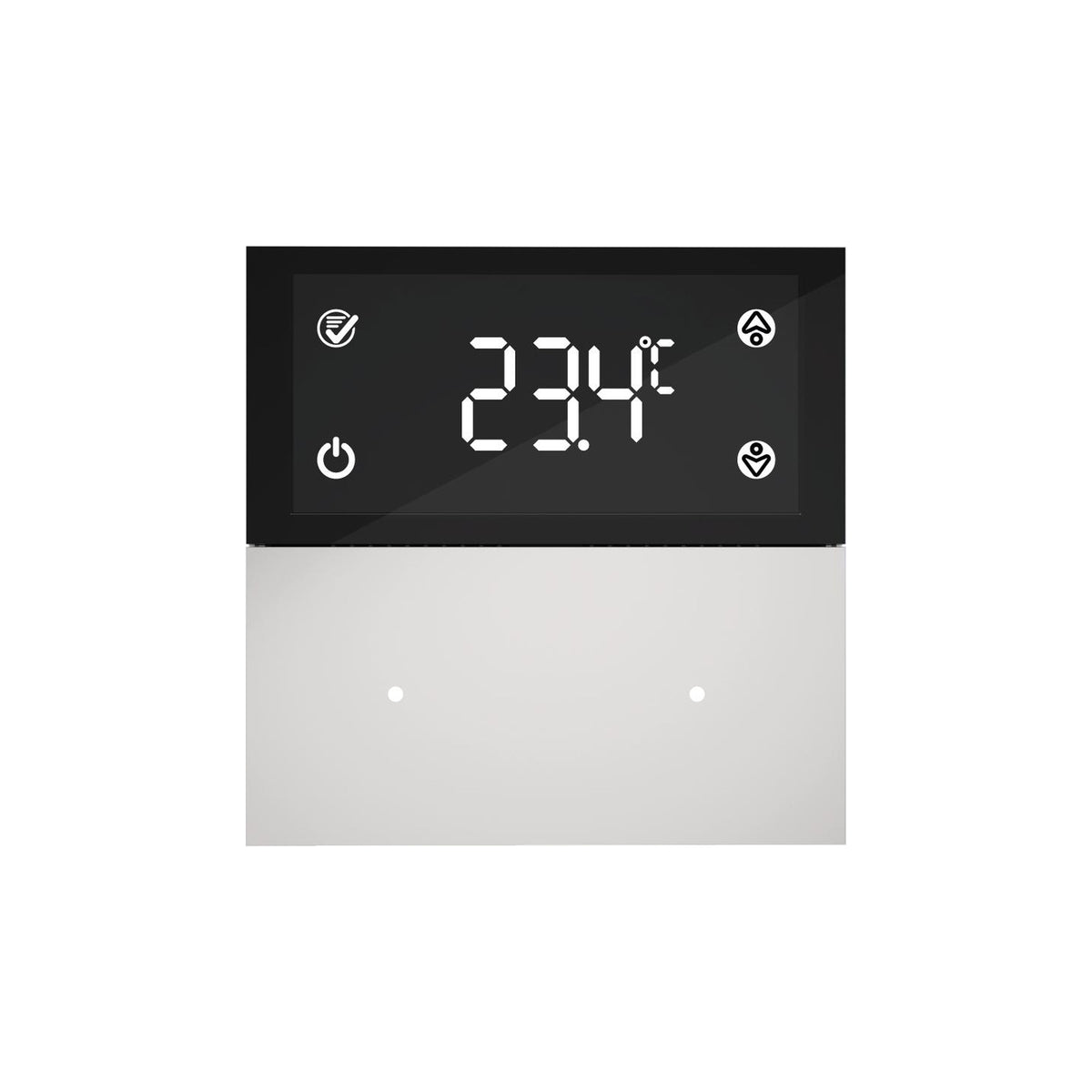

This compact KNX room controller combines a touch display, two physical buttons and advanced thermostat functions within a single wall-mounted interface.

The touch display provides access to the current room temperature, target setpoint, heating or cooling mode and fan settings. It can also show externally supplied information such as outdoor temperature and humidity, with configurable display locking and always-on operation.

Integrated room temperature control supports heating, cooling, automatic changeover and additional heating or cooling stages. Fan coil systems can be managed with automatic or manual control and up to five configurable fan-speed levels.

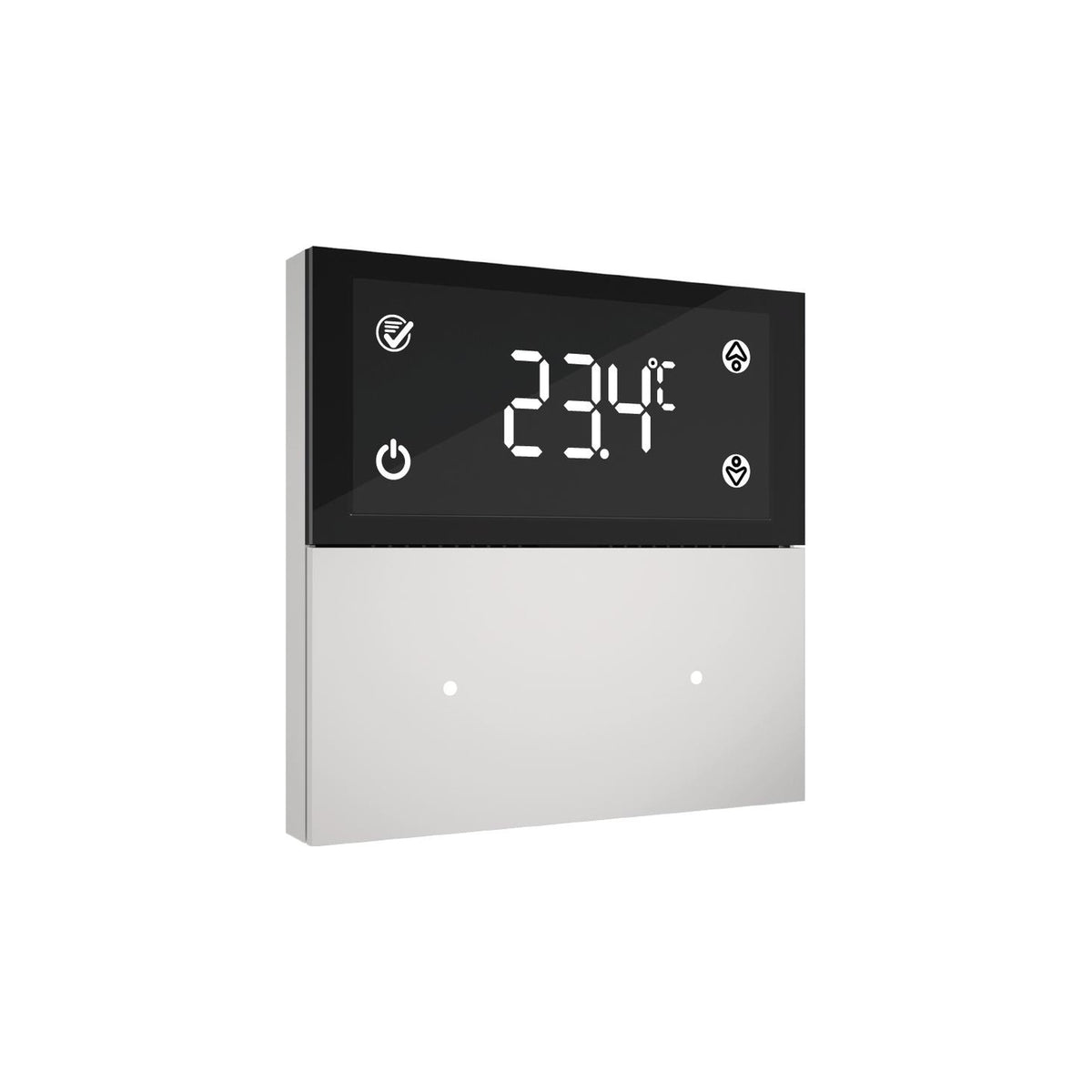

The two physical buttons can be independently configured through ETS for switching, dimming, blind and shutter control, value sending or scene operation. RGB LED feedback provides clear status indication. The frameless 80 × 80 × 35 mm housing includes an adapter for installation into a standard 60 mm round wall box.

Operating Manual Ets Data sheet
