Pblock - Touch Dispay, Thermostat, 6 Button White
Pblock - Touch Dispay, Thermostat, 6 Button White

Pblock - Touch Dispay, Thermostat, 6 Button White

SKU : MM2-PB-D111-112-1WH

Vendor: Brand : MM

Key Features

  • • Touch Climate Display: View and adjust room temperature settings.

    • Six-Button Control: Access multiple independently configured functions.

    • Heating and Cooling: Integrated thermostat manages both operating modes.

    • Fan Coil Control: Supports automatic or manual fan-speed adjustment.

    • Flexible KNX Operation: Controls lighting, shading, values and scenes.

    • RGB LED Feedback: Configurable lighting clearly indicates button status.

Trade pricing and ordering are available to registered partners.

Login to order Apply for Partner Access
Building or renovating a home? We’ll connect you with an integrator near you Specifying for a project? Talk to our team about the full range

Description

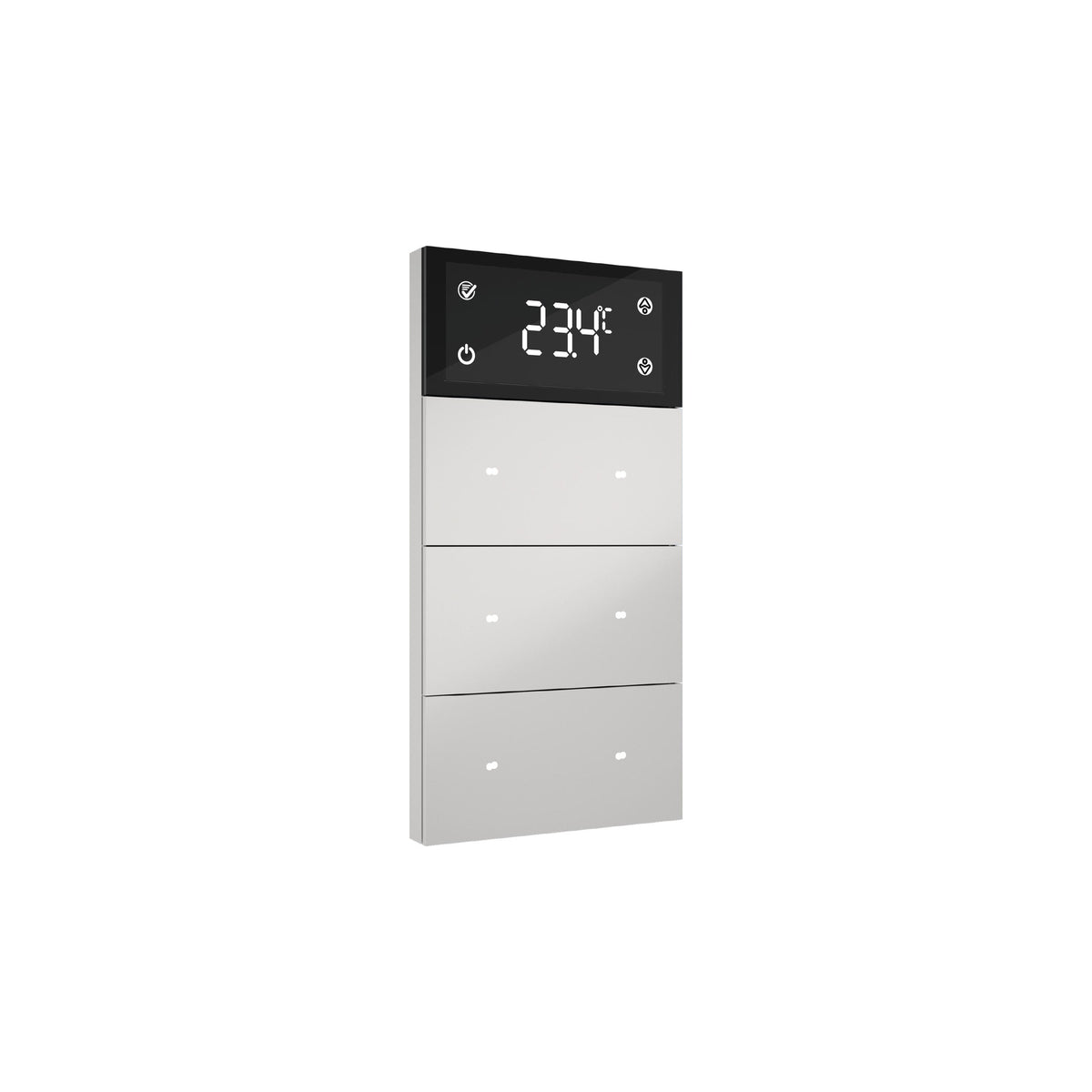

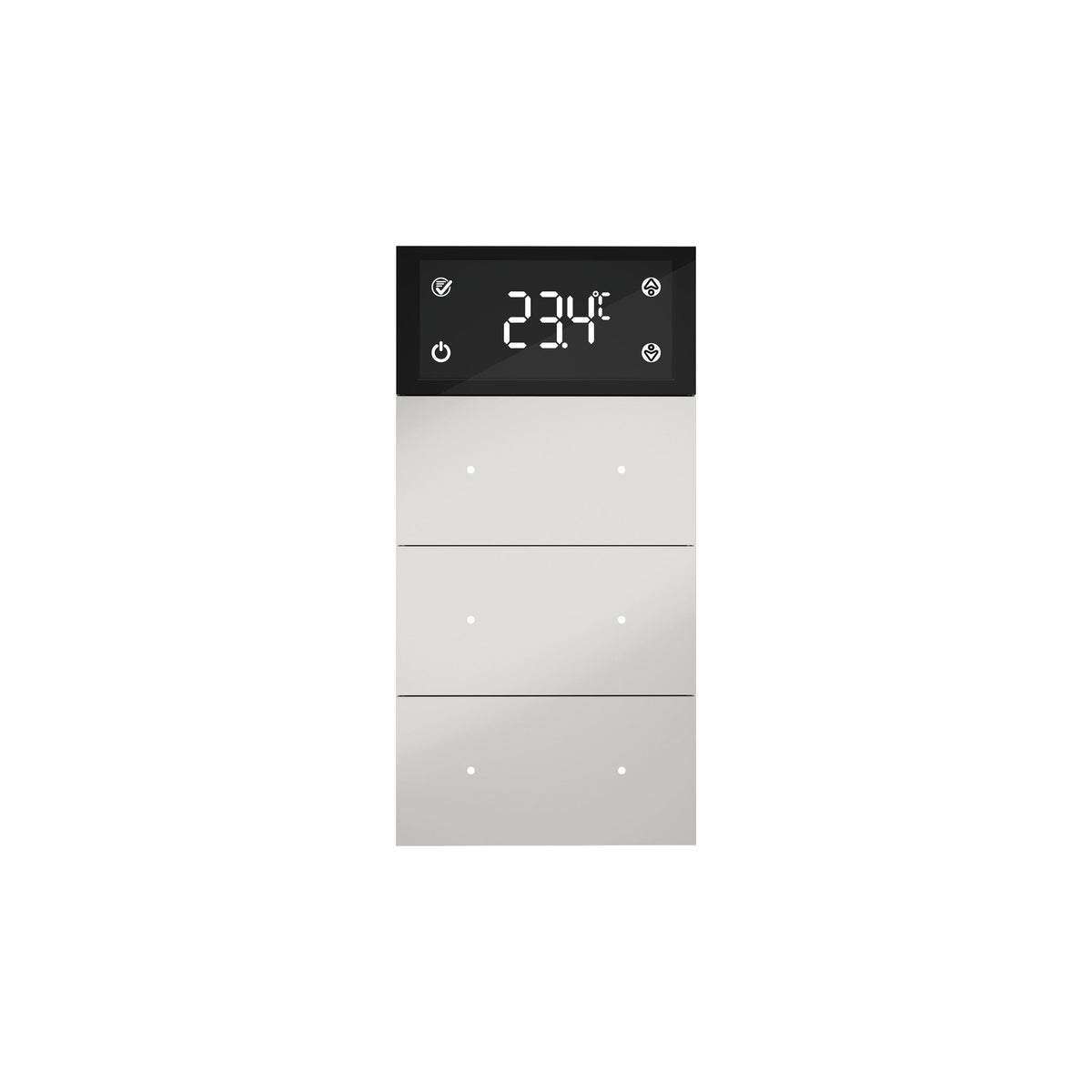

This KNX room controller combines a touch climate display, six physical buttons and advanced thermostat functions within one wall-mounted interface.

The touch display provides access to the current room temperature, target setpoint, heating or cooling mode and fan settings. It can also show externally supplied information such as outdoor temperature and humidity, with configurable display locking and always-on operation.

Integrated room temperature control supports heating, cooling, automatic changeover and additional heating or cooling stages. Fan coil systems can be operated automatically or manually with up to five configurable speed levels.

The six physical buttons can be independently programmed through ETS for switching, dimming, blind and shutter control, value sending or scene operation. RGB LEDs provide clear status feedback. The frameless white housing measures 80 × 160 × 35 mm and includes an adapter for installation into a standard 60 mm round wall box.

Operating Manual Ets Data sheet
