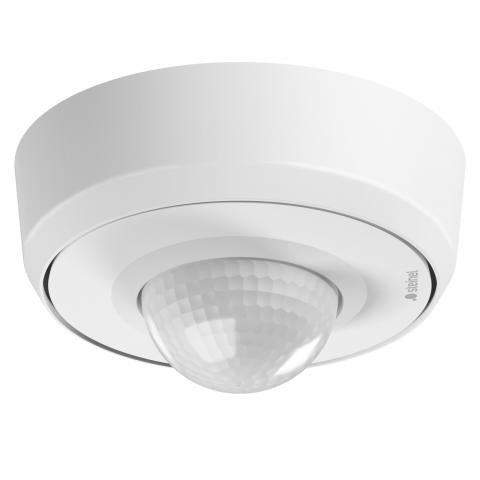

PD-24 ECO KNX AP SURFACE

Key Features:

• 360° infrared detection: Offers wide-area motion detection up to Ø 24 m and presence detection up to Ø 7.5 m, ideal for large spaces such as offices and meeting rooms.
• KNX integration: Provides smart lighting and HVAC control with constant-lighting control, day/night switching, and sabotage protection.
• Easy installation: Modular magnetic plug-in connection for quick and easy setup, configurable via ETS software or Smart Remote.

Product Description:

The Steinel PD-24 ECO KNX Motion and Presence Detector is a highly efficient solution for monitoring motion and presence in commercial environments. With a 360° detection angle, it covers up to Ø 24 m for motion detection and Ø 7.5 m for presence detection, ensuring comprehensive coverage for spaces like offices, warehouses, and passageways.

This device seamlessly integrates with KNX systems, offering intelligent control over lighting and HVAC systems. It features advanced functionalities like constant-lighting control, sabotage protection, and day/night switching, making it an ideal choice for energy management in public buildings. Installation is simplified by its modular magnetic connection, and configuration can be handled remotely through ETS software or the Smart Remote app.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 24 m (452 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 800 lux
• IP Rating: IP54 for indoor and outdoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: Surface-mounted, ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
