PD-24 ECO KNX DE RECESSED BLACK

Key Features:

• 360° infrared detection: Provides wide-area motion detection up to Ø 24 m and presence detection up to Ø 7.5 m, perfect for large commercial spaces.
• KNX integration: Intelligent control over lighting and HVAC systems with constant-lighting control, day/night switching, and sabotage protection.
• Flexible installation: Designed for in-ceiling installations with a modular magnetic plug-in connection for easy setup and configuration via ETS software or Smart Remote.

Product Description:

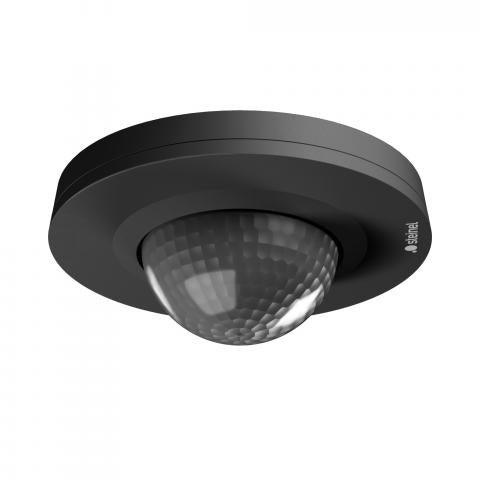

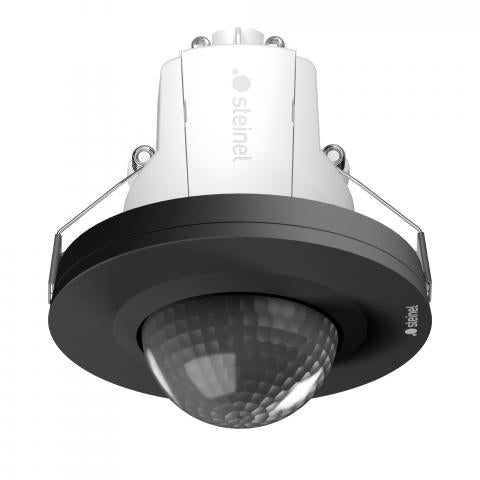

The Steinel PD-24 ECO KNX Motion and Presence Detector offers high-performance motion and presence detection for public buildings and offices. With its 360° detection angle, it covers up to Ø 24 m for motion and Ø 7.5 m for presence detection, ensuring optimal coverage for large spaces such as meeting rooms and passageways.

Fully compatible with KNX systems, this motion detector enables efficient control over lighting, HVAC, and other building automation systems. Key features include constant-lighting control, day/night switching, and sabotage protection, making it ideal for environments where energy efficiency and security are critical. The device is easy to install with its modular magnetic connection, and configuration can be managed through ETS software or the Smart Remote app.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 24 m (452 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 800 lux
• IP Rating: IP20 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
