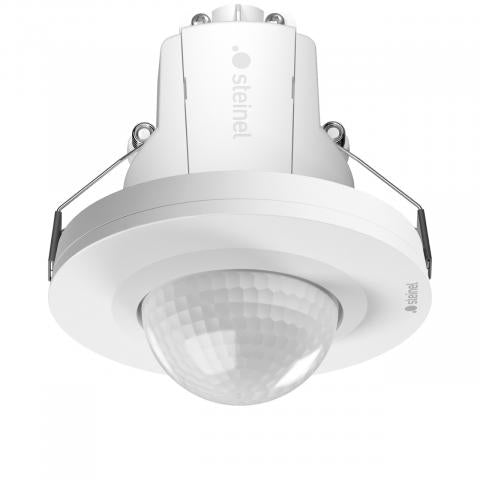

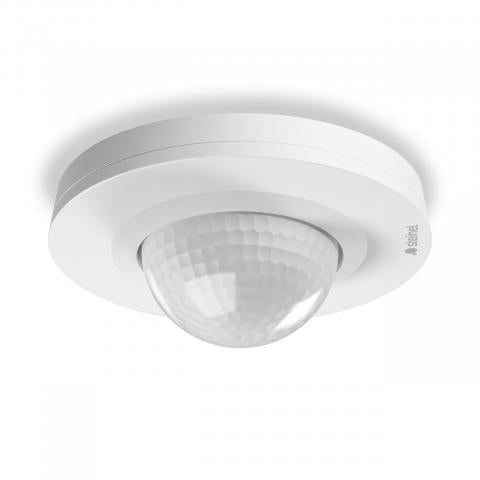

PD-24 ECO KNX DE WHITE RECESSED

Key Features:

• 360° infrared detection: Detects motion up to Ø 24 m and presence up to Ø 7.5 m, providing reliable monitoring for large spaces like offices and meeting rooms.
• KNX integration: Full integration with KNX systems for smart control of lighting and HVAC, featuring constant-lighting control, day/night switching, and sabotage protection.
• Easy installation: Designed for in-ceiling mounting with modular magnetic connections for fast installation and configuration via ETS software or Smart Remote.

Product Description:

The Steinel PD-24 ECO KNX Motion and Presence Detector offers top-tier detection for commercial and public buildings, ensuring comprehensive 360° coverage with motion detection up to Ø 24 m and presence detection up to Ø 7.5 m. It is ideal for environments such as offices, warehouses, and meeting rooms where reliable detection and energy efficiency are essential.

This detector integrates seamlessly with KNX systems, enabling intelligent control over lighting, HVAC, and other building functions. With advanced features like constant-lighting control, day/night switching, and sabotage protection, it enhances energy efficiency and security. Installation is quick and simple with its modular magnetic plug-in design, and all settings can be adjusted through ETS software or the Smart Remote app.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor

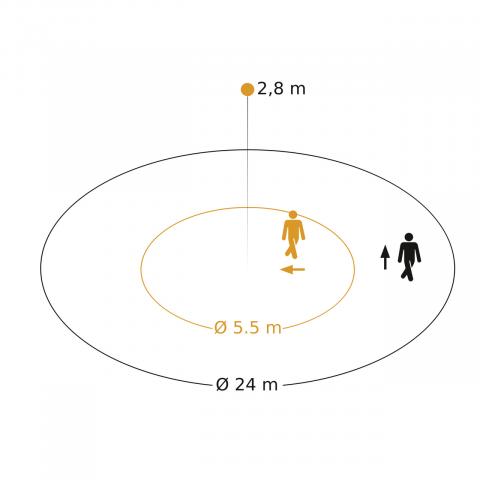

• Detection Range:
  • Motion: Ø 24 m (452 m²)
  • Presence: Ø 7.5 m (44 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 800 lux
• IP Rating: IP20 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
