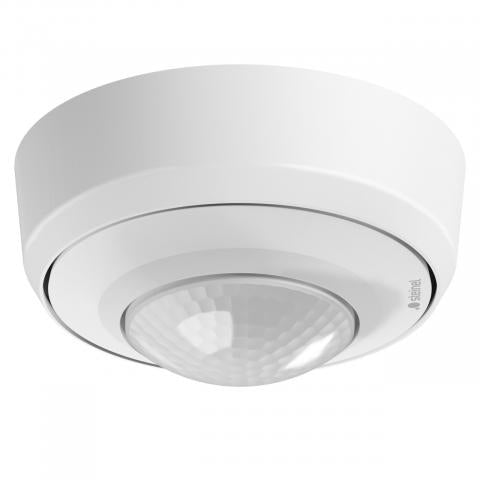

PD-8 ECO DALI-2 IPD AP SURFACE

Key Features:

• Reliable 360° presence detection for efficient lighting control

• Surface-mounted design for flexible installation without ceiling cut-outs

• Seamless integration into DALI-2 lighting control systems

Product Description:

The Steinel PD-8 ECO DALI-2 Surface-Mount Presence Detector combines compact design with cost-efficient functionality. With 360° passive infrared detection, it ensures accurate presence monitoring for small offices, meeting rooms, and service areas. The surface-mounted housing makes it ideal for retrofits and installations where recessed mounting isn’t possible. Fully compliant with DALI-2 standards, it integrates smoothly into intelligent lighting systems, helping to optimise energy savings and user comfort.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR)

• Detection Angle: 360°

• Detection Range: Presence detection up to Ø 8 m

• Mounting Height: Ideal for 2 – 3 m

• Mounting Type: Surface-mounted (white housing)

• Integration: DALI-2 input device compliant (IEC 62386-101, -103, -303, -304)

• Control Channels: Lighting control via DALI-2 system interface

• Ambient Light Level: Adjustable from 10 to 2000 lux

• Time Delay: Adjustable from 1 second to 60 minutes

• Operating Voltage: 16 V DC (via DALI bus)

• Ambient Temperature Range: -25°C to +55°C

• IP Rating: IP20 (indoor use)
