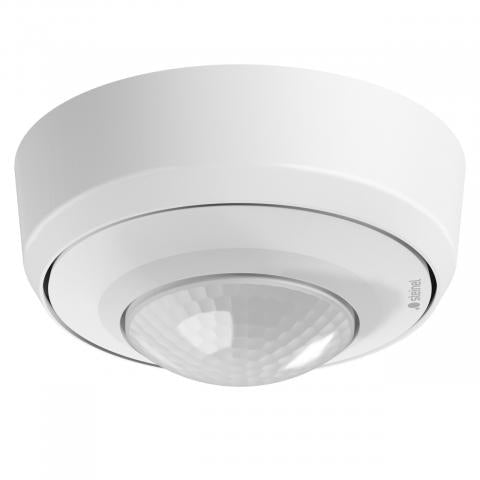

PD-8 ECO KNX AP SURFACE

Key Features:

• 360° motion and presence detection: Designed for precise monitoring with a presence detection range of Ø 6 m and motion detection up to Ø 8 m.
• KNX integration: Fully compatible with KNX systems, allowing intelligent control of lighting and HVAC with advanced features like constant-lighting control.
• Easy installation: Features a modular magnetic plug-in connection for fast installation, and configuration via Smart Remote or ETS software.

Product Description:

The Steinel PD-8 ECO KNX Motion and Presence Detector offers reliable motion and presence detection for commercial and public buildings such as offices, meeting rooms, and passageways. With a 360° detection angle, it ensures comprehensive coverage, providing up to Ø 8 m for motion detection and Ø 6 m for presence detection.

This detector integrates seamlessly with KNX building automation systems, offering energy-efficient control over lighting, HVAC, and other building systems. Installation is straightforward thanks to the modular magnetic plug-in connection, while configuration can be easily managed through Smart Remote or ETS software. Its IP54 rating ensures durability even in challenging environments, and it is available in a sleek white design.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 8 m (50 m²)
  • Presence: Ø 6 m (28 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 800 lux
• IP Rating: IP54 for indoor and outdoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: Surface-mounted, ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, Teach mode, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
