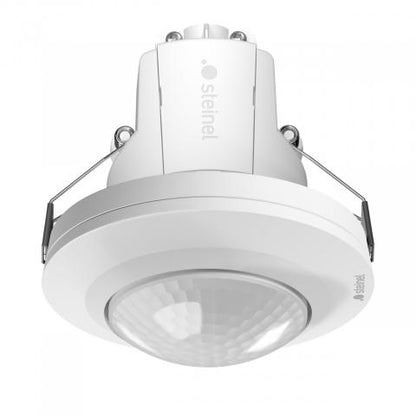

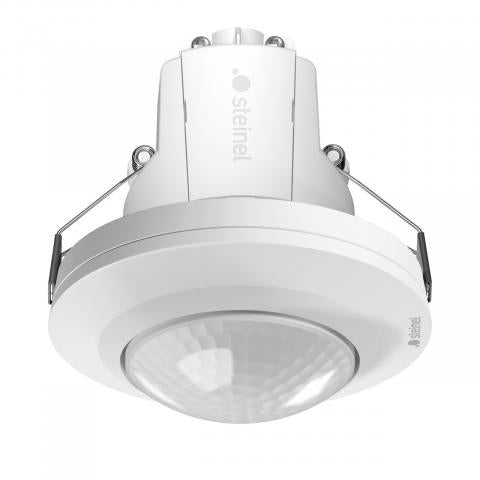

PD-8 ECO KNX DE RECESSED

Key Features:

• 360° infrared detection: Provides motion detection up to Ø 8 m and presence detection up to Ø 6 m, ideal for medium-sized rooms like offices and meeting spaces.
• KNX integration: Intelligent control over lighting and HVAC systems, with advanced features like constant-lighting control, day/night switching, and sabotage protection.
• In-ceiling installation: Easy setup with a modular magnetic connection for concealed wiring, configurable via ETS software or Smart Remote.

Product Description:

The Steinel PD-8 ECO KNX Motion and Presence Detector is a reliable solution for motion and presence detection in offices, meeting rooms, and other commercial spaces. With a 360° detection angle, it covers up to Ø 8 m for motion and Ø 6 m for presence detection, making it a versatile and efficient tool for energy management.

This detector integrates seamlessly with KNX systems, offering intelligent control over lighting, HVAC, and other building functions. Its constant-lighting control and advanced features like day/night switching and sabotage protection make it perfect for public and commercial buildings. Installation is fast and secure with the modular magnetic plug-in connection, and configuration can be done via ETS software or the Smart Remote app.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Motion: Ø 8 m (50 m²)
  • Presence: Ø 6 m (28 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 800 lux
• IP Rating: IP20 for indoor use
• Ambient Temperature Range: -20°C to +50°C
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, sabotage protection, logic gate interconnection
• Operating Voltage: KNX bus-powered, 10 mA
