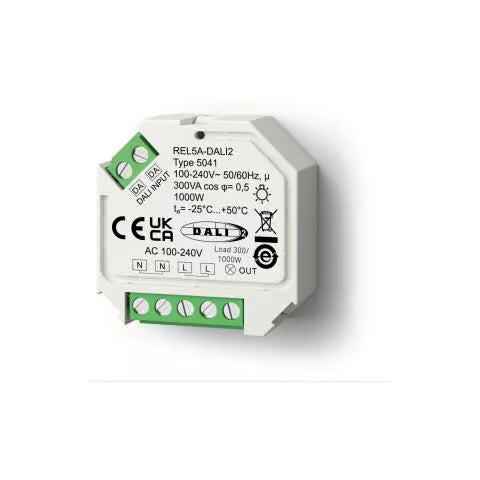

REL5A Dali-2 Relay

Key Features:

• DALI-2 integration: Designed for seamless integration into DALI-2 lighting installations.

• 230 V AC load control: Enables switching of mains-powered devices such as non-DALI luminaires.

• High switching capacity: Supports loads up to 300 W LED.

• Universal compatibility: Works with all Steinel sensors featuring a DALI-APC interface.

• Simple installation: Fits into standard flush-mounted electrical boxes.

• Versatile application: Ideal for upgrading conventional lighting into DALI-based control systems.

Product Description:

The Steinel Relais REL5A-DALI-2 relay module provides a simple and effective way to integrate non-DALI loads into modern DALI-2 lighting systems. It allows direct control of 230 V AC mains-powered luminaires, such as conventional or panel lights, using DALI communication.

Supporting loads of up to 300 W LED, the REL5A-DALI-2 offers a robust switching solution for mixed lighting environments where both DALI and non-DALI fixtures are present. It is compatible with all Steinel sensors featuring a DALI-APC interface, enabling consistent, centralised lighting control across different fixture types.

Compact and easy to install in standard flush-mounted boxes, the REL5A-DALI-2 simplifies system integration and enhances flexibility in commercial, office, and retrofit applications.

Key Specifications:

• Device Type: DALI-2 relay module

• Function: Switching of 230 V AC loads (non-DALI luminaires)

• Load Capacity: Up to 300 W LED

• Integration: DALI-2 compatible, supports DALI-APC interface

• Control Input: DALI-2 bus communication

• Mounting Type: Flush-mounted installation

• Operating Voltage: 230 V AC mains

• Applications: Offices, commercial buildings, retrofits, and mixed DALI/non-DALI systems
