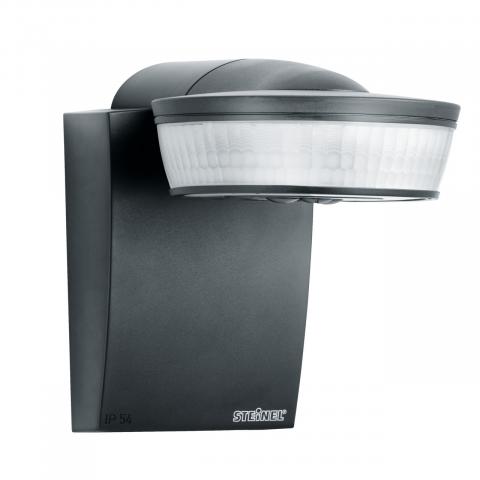

SENSIQ KNX V3.1 EVO BLACK

Key Features:

• 360° infrared detection: Utilises 3 x 100° detection zones, providing precise monitoring with a tangential range of up to 20 m and radial coverage up to 4 m, ideal for both outdoor and indoor environments.
• KNX integration: Fully compatible with KNX systems, offering control over lighting, environmental settings, and features like constant-lighting control, twilight settings, and basic light level functions.
• Surface-mounted installation: Easy installation on walls, ceilings, or corners with an included corner wall mount, suitable for installation heights from 2 to 5 metres.

Product Description:

The Steinel sensIQ KNX Motion Detector is a powerful infrared sensor designed for professional use in large spaces, such as building entrances, driveways, and multi-storey car parks. Its 300° detection angle and three independent zones offer maximum flexibility, with a tangential range of up to 20 metres and radial detection up to 4 metres. This sensor also includes mechanical scalability, allowing the reach to be adjusted precisely in all three directions, ensuring accurate detection across a wide range of settings.

Seamlessly integrated with KNX systems, this motion detector provides intelligent control over lighting and environmental functions, with advanced features like constant-lighting control, twilight settings, and a basic light level function. The device is surface-mounted and comes with a corner wall mount for flexible installation. Configuration is easily managed via ETS software, Smart Remote, or bus control, making it ideal for building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 4 m (42 m²)
  • Tangential: 20 m (1047 m²)
• Detection Angle: 300°
• Mounting Height: 2 to 5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and environmental control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 255 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 10 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls, ceilings, or corners
• Material: Plastic (RAL 9005 black)
• Additional Features: Constant-lighting control, day/night function, Teach mode, master/slave interconnection, logic gate interconnection, corner wall mount included
