SENSIQ KNX V3.1 EVO WHITE

Key Features:

• 360° infrared detection: Features 3 x 100° detection zones, offering precise monitoring with a tangential range of up to 20 m and a radial reach of 4 m, ideal for large outdoor and indoor spaces.
• KNX integration: Fully compatible with KNX systems, offering advanced control over lighting, environmental settings, constant-lighting control, and twilight settings.
• Surface-mounted installation: Easy installation on walls, ceilings, or corners, with an included corner wall mount, making it perfect for entrances, driveways, and large buildings.

Product Description:

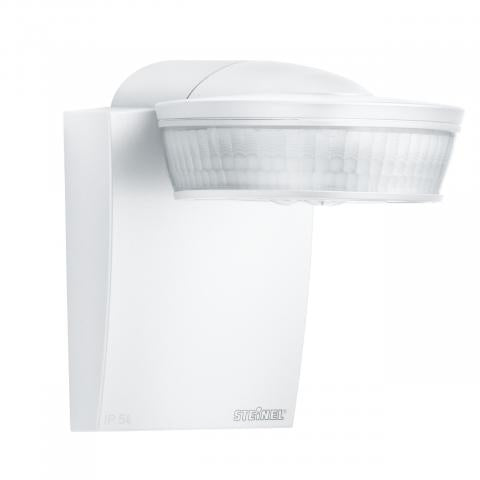

The Steinel sensIQ KNX Motion Detector is a high-performance motion sensor designed for large outdoor and indoor spaces such as building entrances, driveways, and multi-storey car parks. With a 300° detection angle and scalable range settings, the sensor offers tangential monitoring up to 20 metres and radial detection up to 4 metres. This infrared motion detector features mechanical scalability, allowing the range to be adjusted precisely in three directions for optimum performance.

Integrated seamlessly with KNX systems, the sensIQ KNX offers advanced control over lighting and environmental conditions, with features like constant-lighting control, twilight settings, and a basic light level function. The device is surface-mounted and includes a corner wall mount for flexible installation. Configuration is managed via ETS software, remote control, or Smart Remote, ensuring easy integration into professional building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 4 m (42 m²)
  • Tangential: 20 m (1047 m²)
• Detection Angle: 300°
• Mounting Height: 2 to 5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and environmental control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 255 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 10 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls, ceilings, or corners
• Material: Plastic (RAL 9010 white)
• Additional Features: Constant-lighting control, day/night function, Teach mode, master/slave interconnection, logic gate interconnection
