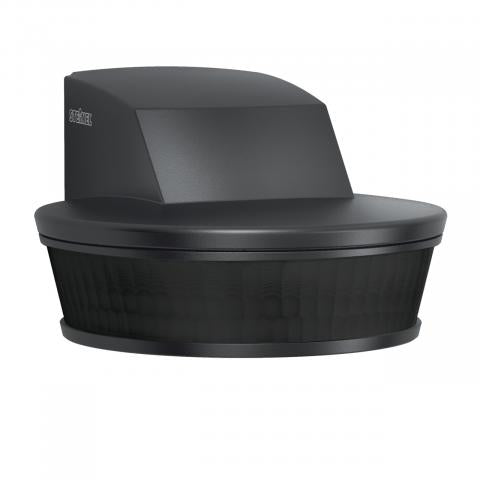

SENSIQ S KNX V3.1 ANTHRACITE BLACK LENS

Key Features:

• 360° infrared detection: Uses 3 x 100° detection zones for precise monitoring with a range of up to 20 m tangentially and 4 m radially, ideal for large spaces like building entrances and driveways.
• KNX integration: Fully compatible with KNX systems, providing control over lighting and environmental settings, including constant-lighting control, twilight settings, and basic light level functions.
• Surface-mounted installation: Designed for easy installation on walls or corners, with included corner wall mount and support for mounting heights of 2 to 5 metres.

Product Description:

The Steinel sensIQ S KNX Motion Detector is a high-performance motion sensor designed for large spaces such as building entrances, driveways, and parking areas. It features 3 x 100° infrared detection zones, ensuring accurate monitoring with a tangential range of up to 20 metres and a radial range of 4 metres. The device allows for precise reach adjustments, ensuring the right level of surveillance in all directions.

This sensor integrates seamlessly with KNX systems, offering intelligent control over lighting and environmental systems, with advanced features like constant-lighting control, twilight settings, and a basic light level function. The sensor is surface-mounted, with a corner wall mount included for flexible installation. Configuration can be handled via ETS software, remote control, or bus, making it ideal for building automation projects where precision and reliability are key.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 4 m (42 m²)
  • Tangential: 20 m (1047 m²)
• Detection Angle: 300°
• Mounting Height: 2 to 5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and presence detection control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 10 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls or corners
• Material: Plastic (RAL 7016 anthracite)
• Additional Features: Constant-lighting control, day/night function, Teach mode, master/slave interconnection, logic gate interconnection
