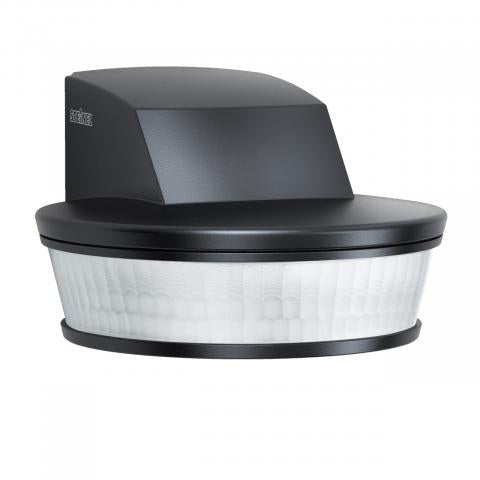

SENSIQ S KNX V3.1 BLACK

Key Features:

• 360° infrared detection: Features 3 x 100° detection zones, providing precise surveillance with a reach of up to 20 m tangentially and 4 m radially, ideal for both indoor and outdoor areas.
• KNX integration: Fully compatible with KNX systems, offering advanced control over lighting and environmental conditions, including constant-lighting control, twilight settings, and basic light level functions.
• Surface-mounted installation: Designed for easy installation on walls or corners, suitable for mounting heights of 2 to 5 metres, perfect for entrances, courtyards, and parking areas.

Product Description:

The Steinel sensIQ S KNX Motion Detector is a high-performance sensor designed for large areas such as building entrances, courtyards, driveways, and parking lots. Its 3 x 100° infrared detection system ensures precise monitoring with a tangential reach of up to 20 metres and a radial reach of 4 metres, covering a wide detection range. This detector also includes mechanical scalability, allowing the range to be adjusted independently in three directions for optimised performance.

This motion detector integrates seamlessly with KNX systems, providing intelligent control over lighting and environmental functions. Features like constant-lighting control, twilight settings, and basic light level functions contribute to energy efficiency and comfort. The sensor is surface-mounted and includes a corner wall mount for flexible installation. Configuration can be handled via ETS software, Smart Remote, or bus control, ensuring ease of use in professional building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 4 m (42 m²)
  • Tangential: 20 m (1047 m²)
• Detection Angle: 300°
• Mounting Height: 2 to 5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and presence detection control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 10 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls or corners
• Material: Plastic (RAL 9005 black)
• Additional Features: Constant-lighting control, day/night function, Teach mode, master/slave interconnection, logic gate interconnection
