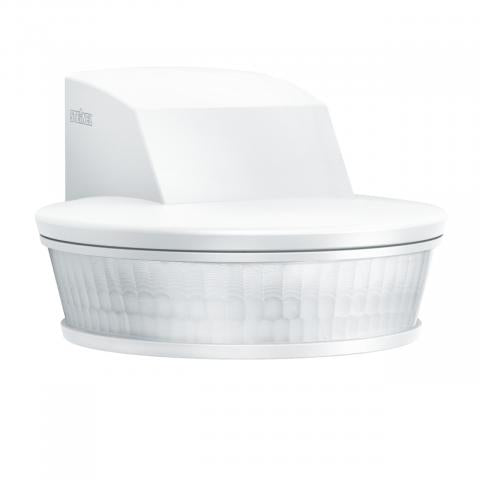

SENSIQ S KNX V3.1 WHITE

Key Features:

• 360° infrared detection: Features a 3 x 100° detection system, providing optimal surveillance with a reach of up to 20 m tangentially and 4 m radially, making it ideal for large outdoor and indoor spaces.
• KNX integration: Fully compatible with KNX systems, offering advanced control over lighting and presence detection, with constant-lighting control, twilight settings, and basic light level functions.
• Surface-mounted installation: Designed for easy installation on walls or corners, suitable for use at heights of 2 to 5 metres, making it perfect for entrances, driveways, and loading bays.

Product Description:

The Steinel sensIQ S KNX Motion Detector is a professional-grade sensor designed for large spaces such as building entrances, courtyards, driveways, and warehouses. Equipped with a high-performance 3 x 100° infrared detection system, it ensures precise monitoring with a detection range of up to 20 metres tangentially and 4 metres radially. This motion detector also features mechanical scalability, allowing you to adjust its range with precision for optimal performance in various settings.

Fully integrated with KNX systems, the sensIQ S offers intelligent control over lighting systems and environmental conditions. It includes features like constant-lighting control, twilight settings, and a basic light level function, making it energy-efficient and adaptable to changing lighting conditions. The device is surface-mounted and can be easily installed on walls or corners, and it comes with a corner wall mount for added flexibility. Configuration is managed through ETS software, remote control, or Smart Remote.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 4 m (42 m²)
  • Tangential: 20 m (1047 m²)
• Detection Angle: 300°
• Mounting Height: 2 to 5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and presence detection control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 10 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls or corners
• Material: Plastic (RAL 9010 white)
• Additional Features: Constant-lighting control, day/night function, Teach mode, master/slave interconnection, logic gate interconnection
