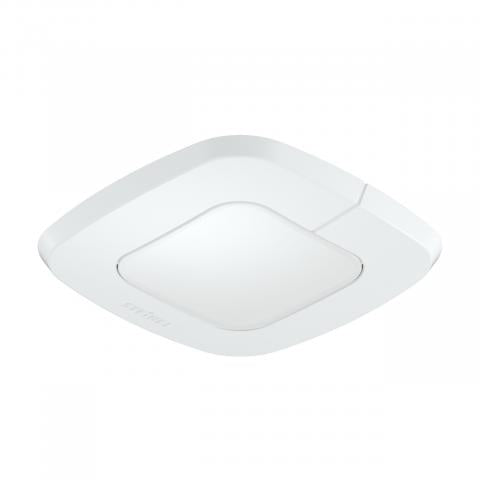

SLIM XS DALI-2 INPUT DEVICE SQUARE

Key Features:

• Ultra-slim design: At just 6 mm thick, this sensor is designed for discreet installation into standard concealed boxes, offering a sleek, professional look.
• 360° infrared detection: Provides reliable coverage up to 16 m² (4 x 4 m), ideal for one-person offices, hotel rooms, and washrooms.
• DALI-2 Input Device integration: Seamlessly connects with DALI-2 systems, enabling sensor data communication to higher-level lighting management systems such as LiveLink.

Product Description:

The Steinel IR Quattro SLIM XS-E DALI-2 Presence Detector is a remarkably slim presence sensor designed for indoor spaces where precision detection and aesthetics are key. With a compact design that fits into any standard concealed box, and an overall height of just 6 mm, this sensor blends seamlessly into the environment. It features high-precision 360° infrared detection, covering a presence detection zone of up to 16 m², making it ideal for one-person offices, hotel rooms, washrooms, and ancillary rooms.

Fully integrated with DALI-2 systems, the IR Quattro SLIM XS-E allows sensor data to be communicated to advanced lighting management systems like LiveLink. This sensor is equipped with a sneak-by guard, ensuring that even small movements are detected. The DALI bus also supports master/slave interconnection, enabling flexible control in larger installations. Designed for concealed installation, this sensor offers reliable performance with minimal visual impact.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range: 4 x 4 m (16 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered, 16 V
• Twilight Setting: Adjustable from 10 to 1000 lux, with TEACH mode
• Time Setting: Adjustable from 30 seconds to 30 minutes
• Operating Temperature: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9010 white)
• Additional Features: Constant-lighting control, sneak-by guard, interconnection via DALI bus
