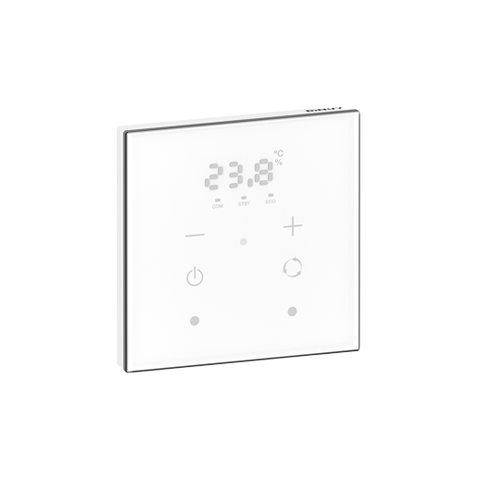

TOUCH TEMPERATURE CAPACITIVE WITH HVAC MODE

Key Features

• Room Temperature Control: Provides precision control of room temperature to ensure optimal comfort across different environments.

• HVAC Operating Mode Adjustment: Dedicated button enables users to easily adjust heating, ventilation, and air conditioning modes for customised climate control.

• Interactive Display: Displays both ambient and setpoint temperatures, along with relative humidity, for enhanced user awareness and control.

• Pre-set Functionality (4 Buttons): Includes four pre-defined buttons for decreasing or increasing setpoint temperature, switching the thermostat On/Off, and adjusting HVAC mode.

• Configurable Buttons (2 Free): Two additional buttons can be programmed for various functions such as switching, dimming, shutter control, or scene management.

• Integrated Sensors: Built-in temperature, brightness, and humidity sensors provide comprehensive environmental monitoring and intelligent system response.

• HVAC Mode LED: Dedicated LED visually indicates the active HVAC mode, giving quick and intuitive system feedback.

• Binary/Analog Inputs (4): Supports four external inputs for door/window contacts or DINUY temperature probes, expanding flexibility and system integration.

• Heating/Cooling Thermostat: Allows configuration of one heating and/or cooling thermostat, providing adaptable temperature management.

• Press/Status Indicator LEDs: Two freely configurable buttons feature ETS-adjustable RGB LEDs for visual status indication and personalised illumination.

• Power Source: Operates exclusively via the KNX bus, requiring no external power supply.

• Flush Mounting: Designed for clean, flush installation into a standard universal mechanism box for a sleek and integrated appearance.

• Commissioning: Easily commissioned through ETS5 or later versions, ensuring seamless integration with modern KNX environments.

Product Description

The KNX Capacitive Touch Thermostat combines sleek design and advanced climate control technology for modern automation systems. With a clear interactive display and touch-sensitive controls, it provides effortless management of temperature, humidity, and HVAC settings in both residential and commercial environments.

This device includes four pre-set buttons for core thermostat functions—temperature adjustment, On/Off control, and HVAC mode selection—alongside two fully configurable keys for user-defined operations such as lighting, shading, or scene management. Integrated temperature, humidity, and brightness sensors deliver precise environmental monitoring, ensuring optimal indoor comfort and energy efficiency.

An HVAC mode LED provides real-time visual feedback, while the unit’s four binary/analog inputs support connection to window contacts or DINUY temperature probes for extended functionality. Powered entirely via the KNX bus, the thermostat offers seamless integration without requiring an auxiliary power source.

Designed for flush mounting, the KNX Capacitive Touch Thermostat achieves a minimalist and elegant appearance while delivering powerful control capabilities. With commissioning via ETS5 or newer, it ensures compatibility with the latest KNX systems, making it a reliable and stylish solution for intelligent climate management.
