TRUE PRESENCE IP SURFACE - OBS

Key Features:

• True presence detection: Detects human presence based on vital signs like breathing and micro-movements, ensuring precision in occupancy monitoring and eliminating unnecessary energy usage.
• 360° high-frequency detection: Provides detection coverage of Ø 15 m for movement and presence, and Ø 9 m for True Presence, ideal for precise monitoring in offices, classrooms, and warehouses.
• KNX and Bluetooth integration: Fully compatible with KNX systems, with Bluetooth functionality for configuration and control, along with DALI bus interconnection.

Product Description:

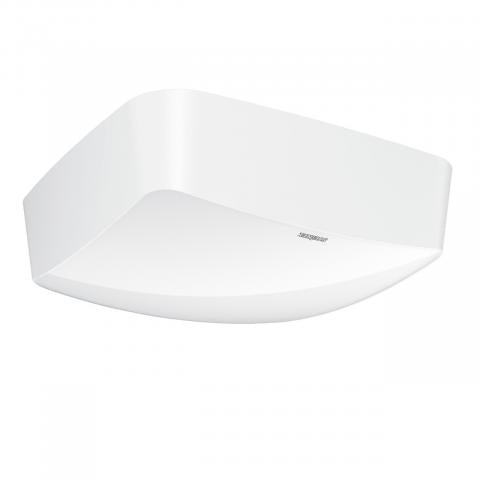

The Steinel True Presence KNX Detector is a surface-mounted sensor designed to deliver 100% accurate presence detection using advanced high-frequency technology. By sensing micro-movements and vital signs, such as breathing, this detector is able to identify human presence even in complete stillness. The sensor provides coverage of up to Ø 15 metres for movement and Ø 9 metres for True Presence, making it ideal for a range of indoor environments such as classrooms, offices, and conference rooms.

This sensor integrates with KNX systems, offering intelligent control over lighting, HVAC, and environmental systems. It also features Bluetooth connectivity for easy configuration and management, making setup simple and efficient. Additional interconnection via the DALI bus ensures full compatibility with building automation systems. The surface-mounted design ensures it fits seamlessly into professional environments.

Key Specifications:

• Detection Technology: High-frequency sensor (7.2 GHz) with light sensor
• Detection Range:
  • Radial: Ø 15 m (177 m²)
  • Tangential: Ø 15 m (177 m²)
  • Presence: Ø 15 m (177 m²)
  • True Presence: Ø 9 m (64 m²)
• Detection Angle: 360°
• Mounting Height: 2.0 to 12.0 m (optimal at 2.8 m)
• Integration: KNX-compatible, Bluetooth, DALI bus interconnection
• Power Supply: Passive PoE SELV, standard PoE (IEEE 802.3 af)
• Power Consumption: 1.1 W
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, interconnection via Bluetooth and DALI bus
