TRUE PRESENCE KNX BLACK

Key Features:

• True Presence detection: First of its kind, accurately detects human presence by monitoring micro-movements and vital functions like breathing, eliminating unnecessary stay-ON times and saving energy.
• 360° high-frequency detection: Covers a maximum area of Ø 15 m for movement and presence, and Ø 9 m for True Presence detection, ideal for spaces such as offices, meeting rooms, and classrooms.
• KNX integration: Fully compatible with KNX systems, providing intelligent control over lighting, HVAC, and environmental conditions such as humidity and temperature.

Product Description:

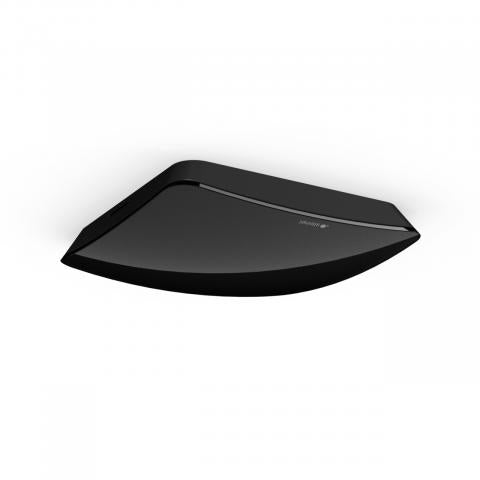

The Steinel True Presence KNX Presence Detector sets a new benchmark in building automation with its world-first true presence detection technology. By measuring micro-movements and vital signs like breathing, it delivers 100% accurate presence detection, preventing unnecessary lighting and HVAC operation, resulting in significant energy savings. The True Presence technology is capable of detecting human presence within a Ø 9 m range, making it ideal for large offices, conference rooms, and high-bay warehouses.

Integrated seamlessly with KNX systems, this detector allows advanced control over lighting and HVAC, including features like constant-lighting control, day/night function, and environmental monitoring such as temperature and humidity. Its concealed in-ceiling design ensures discreet installation, and configuration is easy via ETS software or Bluetooth, making it an essential tool for modern building automation.

Key Specifications:

• Detection Technology: High-frequency sensor (7.2 GHz) with humidity, temperature sensors
• Detection Range:
  • Movement: Ø 15 m (177 m²)
  • Presence: Ø 15 m (177 m²)
  • True Presence: Ø 9 m (64 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 12 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting, HVAC, and environmental control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable via KNX
• Time Setting: Adjustable from 30 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9005 black)
• Additional Features: Constant-lighting control, day/night function, temperature and humidity output, logic gate interconnection, master/slave connection
