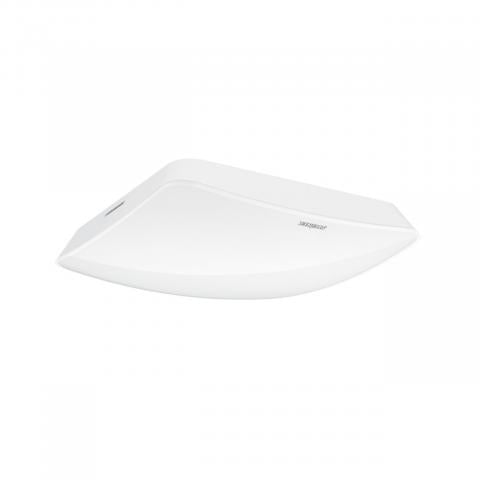

TRUE PRESENCE KNX RECESSED DE

Key Features:

• World’s first true presence detection: Reliably detects human presence by monitoring micro-movements and vital functions such as breathing, ensuring no unnecessary stay-ON times or wasted energy.
• 360° high-frequency detection: Covers up to Ø 15 m for presence and movement detection, with True Presence detection in a Ø 9 m zone.
• KNX integration: Offers full integration with KNX systems, controlling lighting and HVAC with features like constant-lighting control, humidity and temperature monitoring, and energy-saving modes.

Product Description:

The Steinel True Presence KNX Presence Detector V3.0 sets a new standard in building automation with its world-first true presence detection technology. Using high-frequency sensors, this detector monitors not only micro-movements but also human vital signs such as breathing, ensuring 100% reliable detection. With coverage up to Ø 15 m for presence detection and Ø 9 m for true presence detection, it is perfect for classrooms, offices, conference rooms, and production facilities.

Integrated with KNX systems, the True Presence detector allows for precise control of lighting, HVAC, and environmental conditions, including humidity and temperature. This sensor offers advanced features like constant-lighting control, day/night switching, and energy-saving modes, making it an ideal choice for intelligent energy management in professional environments.

Key Specifications:

• Detection Technology: High-frequency sensor (7.2 GHz) with light, temperature, and humidity sensors
• Detection Range:
  • Presence: Ø 15 m (177 m²)
  • True Presence: Ø 9 m (64 m²)
  • Movement: Ø 15 m (177 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 12 m (optimal at 2.8 m; max for True Presence detection is 4 m)
• Integration: KNX-compatible for lighting, HVAC, and environmental control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 30 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 mA
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, humidity and temperature output, logic gate interconnection, Teach mode
