TRUE PRESENCE MULTISENSOR KNX

Key Features:

• 360° high-frequency detection: Provides reliable presence detection with a maximum reach of Ø 15 m for movement, Ø 9 m for True Presence, and capable of detecting through materials like glass, wood, and stud walls.
• 7 integrated sensors: Measures brightness, room temperature, humidity, air quality, volatile organic compounds (VOC), and CO2 for enhanced building automation and comfort.
• KNX integration: Seamless integration with KNX systems, offering advanced control over lighting, HVAC, and environmental monitoring, including constant-lighting control and air quality management.

Product Description:

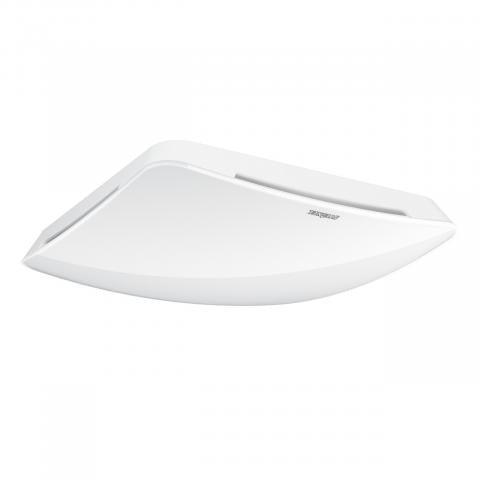

The Steinel Multisensor True Presence KNX is designed to offer the most comprehensive environmental monitoring and presence detection for intelligent buildings. With its high-frequency 7.2 GHz sensor technology, the detector can accurately sense human presence and monitor air quality metrics such as CO2 levels, temperature, humidity, and VOCs. It offers an impressive detection range of Ø 15 m for movement and Ø 9 m for True Presence, ensuring precise monitoring in offices, classrooms, conference rooms, and hotel rooms.

The sensor is fully integrated with KNX systems, allowing control over lighting, HVAC, and environmental functions, enhancing both energy efficiency and indoor comfort. The True Presence KNX Multisensor supports constant-lighting control, day/night switching, and energy-saving modes. It is designed for concealed ceiling installation, blending seamlessly into any professional setting while providing advanced building automation features.

Key Specifications:

• Detection Technology: High-frequency (7.2 GHz) with integrated CO2, air pressure, humidity, temperature, VOC, and light sensors
• Detection Range:
  • Movement: Ø 15 m (177 m²)
  • True Presence: Ø 9 m (64 m²)
• Detection Angle: 360°
• Mounting Height: 2.0 to 12.0 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting, HVAC, and environmental control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 2 to 1000 lux, TEACH mode included
• Time Setting: Adjustable from 30 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 V (40 mA)
• Power Consumption: 1 W
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Constant-lighting control, day/night function, CO2 and air quality monitoring, VOC detection, temperature and humidity output, logic gate interconnection, master/master and master/slave interconnection via KNX bus
