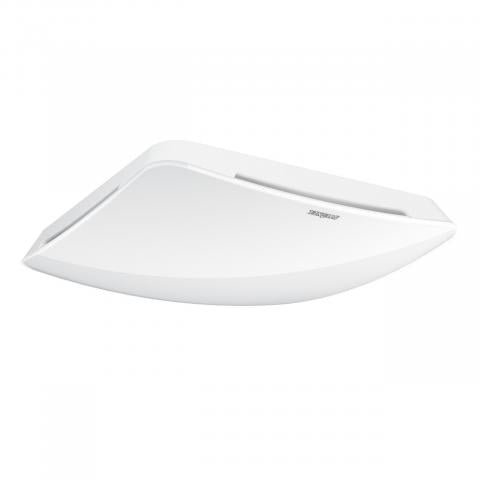

TRUEPRESENCE MULTISENSOR AEROSOL KNX

Key Features:

• Comprehensive air quality monitoring: Detects presence and monitors CO2 levels, air pressure, humidity, temperature, VOCs (volatile organic compounds), and light levels, ensuring optimal indoor air quality.
• True Presence detection: Accurately identifies human presence based on micro-movements and vital functions, covering a range of up to Ø 9 m.
• KNX integration: Fully compatible with KNX systems, offering intelligent control over lighting, HVAC, and air quality, including risk of infection detection based on air quality metrics.

Product Description:

The Steinel True Presence Multisensor Aerosol KNX is an advanced multisensor designed for professional indoor spaces such as classrooms, offices, and meeting rooms. It combines high-frequency presence detection with comprehensive environmental monitoring, including CO2 levels, air humidity, air pressure, temperature, VOCs, and brightness. With True Presence detection technology, it ensures reliable identification of human presence, monitoring vital functions like breathing over a Ø 9 m range.

This multisensor integrates seamlessly with KNX systems, providing intelligent control over lighting, HVAC, and air quality management. It also introduces the ability to assess the risk of infection based on air quality parameters, helping improve health, safety, and comfort in indoor environments. Easy to install with concealed wiring, the True Presence Multisensor is a versatile solution for building automation projects focused on both efficiency and wellbeing.

Key Specifications:

• Detection Technology: High-frequency sensor (7.2 GHz) with CO2, air pressure, air humidity, temperature, VOC, and light sensors
• Detection Range:
  • Radial: Ø 15 m (177 m²)
  • Tangential: Ø 15 m (177 m²)
  • Presence: Ø 15 m (177 m²)
  • True Presence: Ø 9 m (64 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 12 m (optimal at 2.8 m; max True Presence detection at 4 m)
• Integration: KNX-compatible for lighting, HVAC, and air quality control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 30 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 V (40 mA)
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, risk of infection detection, air quality metrics, day/night function, Teach mode, logic gate interconnection
