Universal Dimming Actuator 1-fold

Key Features

• Versatile Dimming Control: Supports leading and trailing edge phase dimming for a wide range of lighting loads up to 200W.

• Flexible Input Configuration: Individually configurable 4-fold input and 4-fold input/LED output with support for cable lengths up to 10 m.

• Advanced KNX Functions: Includes switching, relative and absolute dimming, status response, scene control (up to 16 scenes), staircase lighting, flashing, delay, threshold, forced, and safety functions.

• Customisable Dimming Curve: Offers six preset dimming curves plus one user-defined option for precise lighting performance via ETS configuration.

• Logic & Automation Capabilities: Features 8 programmable logic functions for enhanced automation and adaptive control scenarios.

• Compact Flush-Mounted Design: Powered directly via the KNX bus and designed for seamless integration into wall boxes or concealed installations.

Product Description

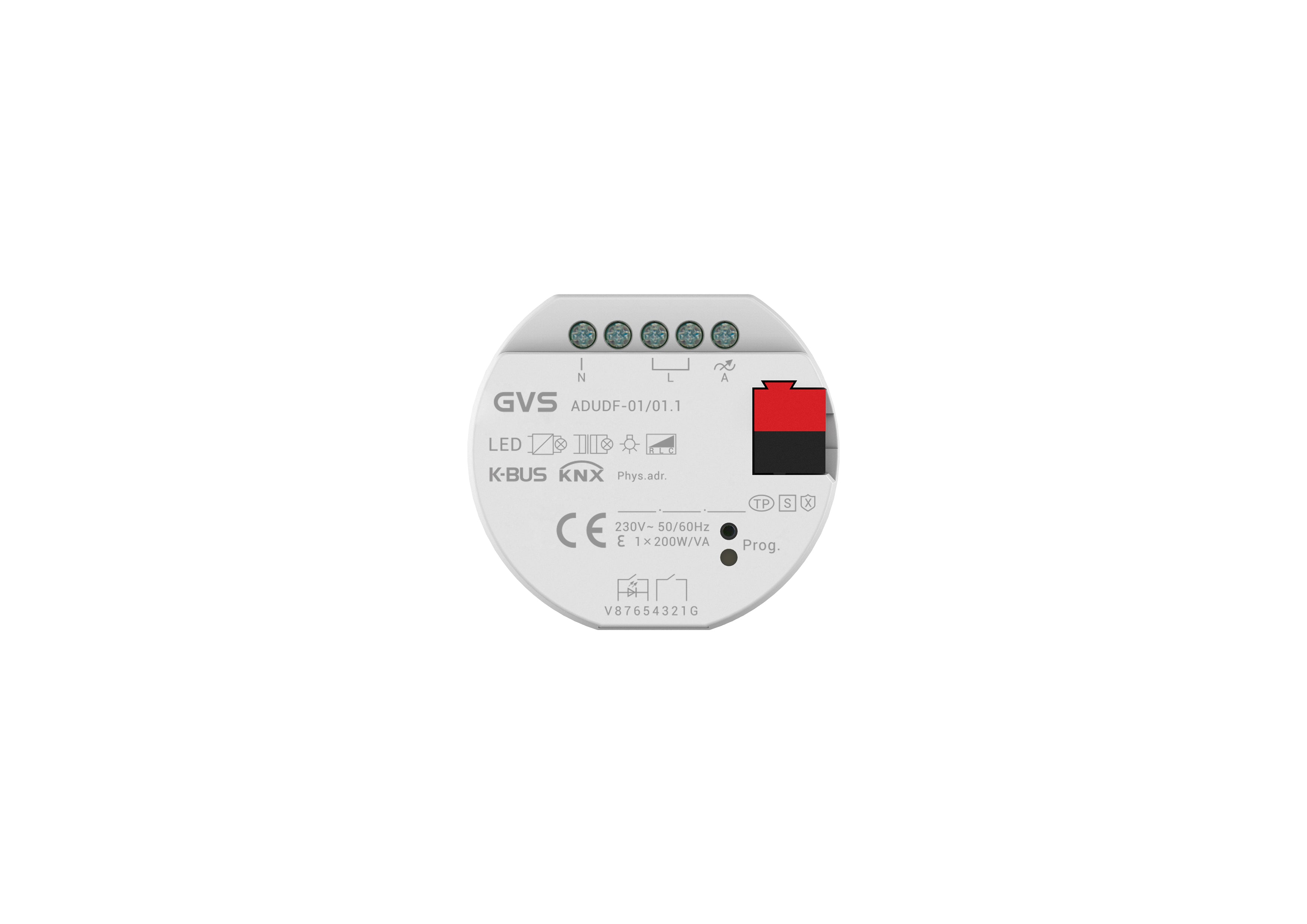

The GVS KNX Universal Dimming Actuator with Secure, 1-Fold, Flush Mounted provides precise, flexible, and intelligent dimming control for a variety of lighting applications in KNX smart building environments. Supporting leading and trailing edge phase dimming up to 200W, it ensures compatibility with diverse lighting loads, including LED, incandescent, and halogen fixtures.

Equipped with comprehensive KNX functionality, it supports switching, dimming (relative and absolute), scene recall (up to 16 scenes), status feedback, staircase lighting, flashing, delay, threshold, and safety modes, delivering full control and adaptability for modern lighting systems.

The actuator also includes 8 programmable logic functions and customisable dimming curves (6 presets + 1 user-defined) for precise lighting behaviour adjustment via ETS. Each channel can be configured individually with 4-fold inputs or LED outputs, supporting up to 10 m cable length, dry contact inputs, and 5V/12V DC LED outputs for flexible system design.

Compact and flush-mounted, the GVS KNX Universal Dimming Actuator – 1-Fold integrates seamlessly into wall or junction boxes, powered directly from the KNX bus. It’s a reliable and efficient solution for achieving smooth, secure, and intelligent dimming control within residential, commercial, or hospitality automation systems.
