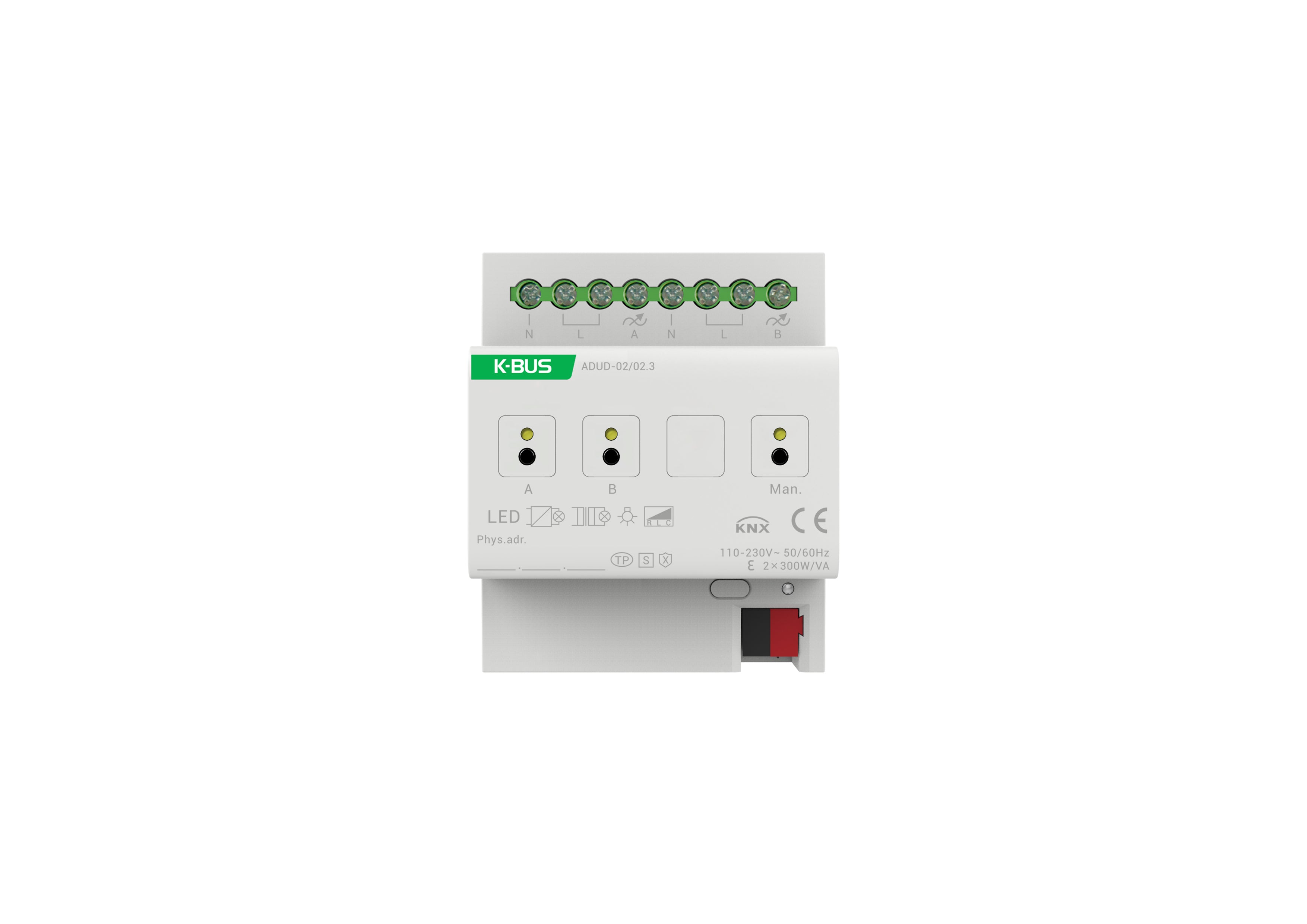

KNX Universal Dimmer 2- Fold

Key Features

• Dual Dimming Channels: Two independent outputs supporting up to 300W per channel, with parallel operation capability for a combined load of up to 500W.

• Wide Voltage Range: Operates across 110–230V AC, 50–60Hz, ensuring compatibility with a variety of electrical systems.

• Comprehensive KNX Functions: Includes switching, relative and absolute dimming, status response, scene control (up to 16 scenes), staircase lighting, flashing, delay, threshold, forced, and safety functions.

• Configurable Dimming Curves: Offers six preset dimming curves plus one user-defined option for fine-tuned lighting control through ETS configuration.

• Enhanced Control & Monitoring: Features manual operation, output indication, central control function, and an operating hours counter for diagnostics and maintenance.

• Compact DIN-Rail Design: Housed in a 4SU MDRC enclosure, powered directly from the KNX bus (7 mA) for simple and reliable installation.

Product Description

The GVS KNX Universal Dimming Actuator with Secure, 2-Fold, 4SU MDRC provides flexible and precise dimming control for a wide range of lighting applications in KNX smart building environments. Each of its two dimming channelssupports up to 300W, with the option to operate them in parallel mode for a combined load of up to 500W, ensuring adaptability to both residential and commercial projects.

Designed for leading and trailing edge phase dimming, the actuator offers smooth, flicker-free lighting control across various lamp types including LED, incandescent, and halogen. The device operates within a 110–230V AC (50–60Hz)range, offering global installation flexibility.

Full KNX functionality includes switching, relative and absolute dimming, scene recall (up to 16 scenes), delay switching, flashing, threshold, forced, and safety functions, allowing users to create dynamic lighting scenes and responsive control systems. Additional features such as manual operation, output indication, central control, and operating hours monitoring provide enhanced convenience and system insight.

Configurable through ETS, the actuator supports six preset dimming curves plus one custom option for optimised performance. Compact and DIN-rail mounted (4SU MDRC), the GVS KNX Universal Dimming Actuator with Secure – 2-Fold is powered directly from the KNX bus (7 mA), delivering efficient, reliable, and secure lighting control for any modern automation project.
