IHF 3D KNX 3.5 BLACK

Key Features:

• Intelligent high-frequency detection: Utilises iHF 3D technology to distinguish between different moving objects, ensuring no false triggers from small animals or temperature fluctuations, with a detection range of up to 5 metres.
• KNX integration: Fully compatible with KNX systems, providing advanced control over lighting and environmental functions, including twilight setting, basic light level function, and presence detection.
• Surface-mounted installation: Designed for easy installation on walls, making it suitable for outdoor areas like facades, driveways, and terraces.

Product Description:

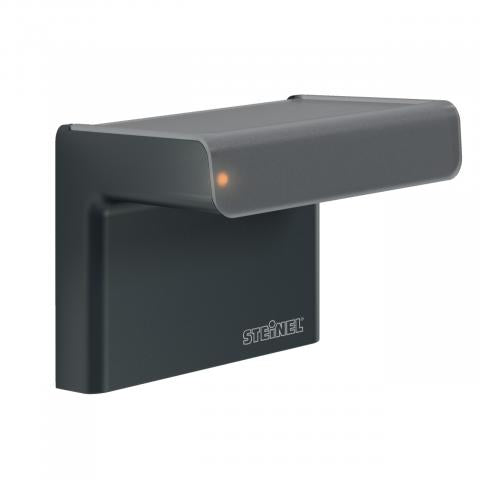

The Steinel iHF 3D KNX Motion Detector is a high-performance sensor designed for outdoor spaces such as carports, patios, and parking areas. Equipped with intelligent high-frequency (iHF) technology, it offers precise motion detection over a 160° field, ensuring reliable detection within a 5-metre range. The advanced 3D sensor technology distinguishes between humans and other objects, reducing false activations caused by small animals or extreme temperatures.

This detector seamlessly integrates with KNX systems, offering full control over lighting and environmental functions. Key features include twilight settings, basic light level control, and presence detection logic. Its durable IP54-rated construction ensures protection against dust and splashes, making it ideal for harsh outdoor conditions. Bluetooth connectivity allows for easy configuration via app or ETS software, ensuring flexibility in installation and setup.

Key Specifications:

• Detection Technology: Intelligent high-frequency sensor (5.8 GHz) with light sensor
• Detection Range:
  • Radial: 5 m (35 m²)
  • Tangential: 5 m (35 m²)
• Detection Angle: 160°
• Mounting Height: 1.8 to 2.0 m (optimal at 1.8 m)
• Integration: KNX-compatible for lighting and environmental control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 10 to 2000 lux
• Time Setting: Adjustable from 10 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for outdoor use
• Installation Type: Surface-mounted on walls
• Material: Plastic (RAL 9005 black)
• Additional Features: Presence detection, logic gate function, distance measurement, sabotage protection, day/night function, master/slave interconnection
