KNX 16-Fold Multi-function Actuator, 10A

Key Features

• 16-Channel Multifunction Design: Sixteen 10A channels designed for switching, shutter, fan, and valve control, providing comprehensive functionality for large-scale KNX automation systems.

• Advanced KNX Functions: Supports switching, status feedback, 8-scene control, time scheduling, preset modes, logic functions, threshold settings, and forced operation for complete system flexibility.

• Versatile Control Capabilities: Compatible with AC, DC, and dry contact motors for shutter operation, and supports 2-pipe and 4-pipe heating or cooling valve configurations.

• Secure KNX Communication: Utilises KNX Data Secure to ensure encrypted and tamper-proof communication across the KNX network, maintaining system safety and stability.

• High-Performance Magnetic Relays: Equipped with durable, high-current magnetic relays rated at 10A per channel, delivering long-lasting reliability and efficient load management.

• DIN-Rail Mounted Design: Compact 12SU MDRC housing enables convenient DIN-rail installation, powered directly via the KNX bus (10 mA) for simplified setup and operation.

Product Description

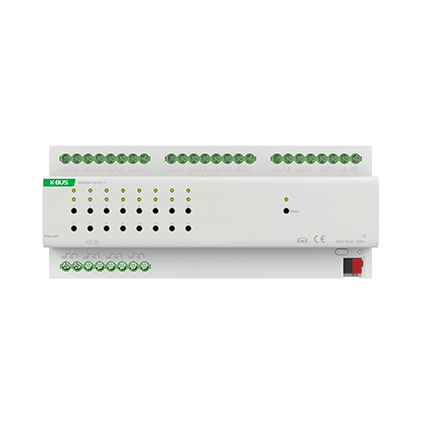

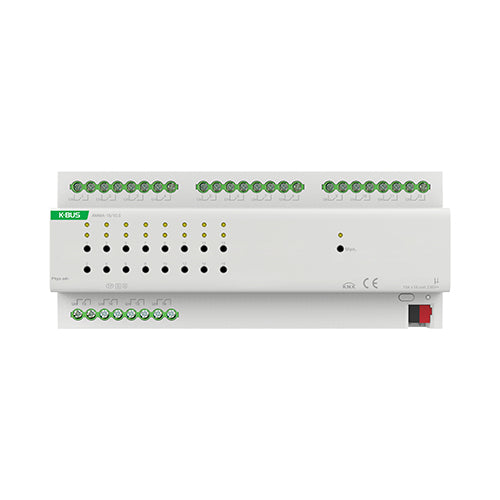

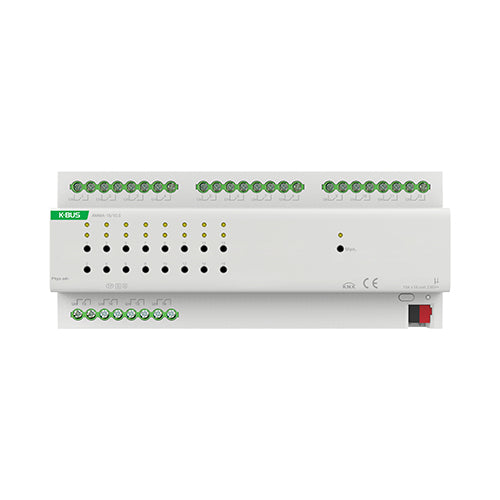

The GVS KNX Multifunctional Actuator with Secure (16-Fold, 10A, 12SU) is a powerful and highly versatile control module designed for demanding KNX automation projects. With sixteen individually controlled 10A channels, it provides complete management of lighting, shading, HVAC, and valve systems, making it ideal for large residential, commercial, or industrial installations.

This actuator supports an extensive range of KNX functions, including switching, scene control, time-based automation, logic programming, threshold configuration, and forced operation. It offers flexible operation modes compatible with AC/DC and dry contact motors for shutters, as well as 2-pipe and 4-pipe heating/cooling valve control, ensuring adaptability across diverse control applications.

Enhanced with KNX Data Secure, the device guarantees encrypted communication and maximum system protection. Built with industrial-grade 10A magnetic relays, it ensures reliable long-term operation even under heavy load conditions. Compact and easy to install, the 12SU DIN-rail (MDRC) design allows efficient integration into distribution panels, powered directly from the KNX bus (10 mA). The GVS KNX Multifunctional Actuator with Secure delivers a durable, flexible, and future-proof solution for advanced KNX automation environments.
