KNX 24-Fold Multi-function Actuator, 10A

Key Features

• 24-Channel Multifunction Design: Twenty-four 10A channels engineered for switching, shutter, fan, and valve control, ideal for large-scale KNX automation systems.

• Comprehensive KNX Functions: Supports switching, status feedback, 8-scene control, time scheduling, preset modes, logic operations, threshold settings, and forced operation for complete automation control.

• Flexible Control Options: Compatible with AC, DC, and dry contact motor types for shutter operation, and supports both 2-pipe and 4-pipe heating or cooling valve configurations.

• Secure KNX Communication: Incorporates KNX Data Secure for encrypted and tamper-proof data transmission, ensuring system integrity and protection.

• Reliable High-Current Relays: Features industrial-grade magnetic relays rated at 10A per channel for dependable performance and long operational life under heavy loads.

• DIN-Rail Mounted Design: 12SU MDRC housing for space-efficient DIN-rail installation, powered directly via the KNX bus (12 mA) for straightforward setup.

Product Description

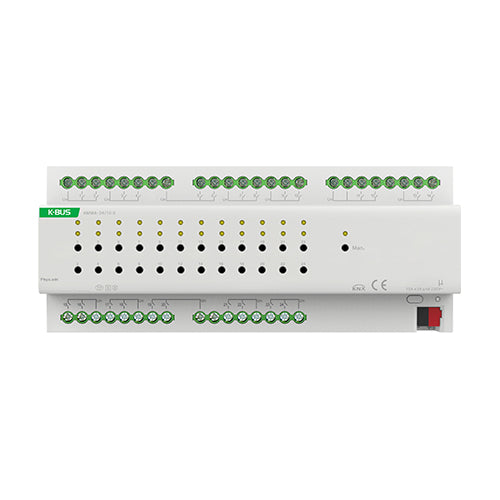

The GVS KNX Multifunctional Actuator with Secure (24-Fold, 10A, 12SU) is a powerful, high-capacity automation device designed for professional KNX installations. Offering 24 independent 10A channels, it provides extensive control capabilities for lighting, shading, HVAC, and valve systems, making it the ideal choice for complex residential, commercial, or industrial environments.

Supporting a full suite of KNX functions—including scene control, logic programming, threshold configuration, time scheduling, and forced operation—this actuator enables advanced customisation and reliable system management. It supports both AC/DC and dry contact motor types for shutter applications, as well as 2-pipe and 4-pipe heating and cooling systems, ensuring flexibility across a wide range of automation scenarios.

Enhanced with KNX Data Secure, the actuator provides encrypted communication and system security. Built with high-quality 10A magnetic relays, it guarantees long-term performance and stability even under continuous operation. Housed in a compact 12SU DIN-rail (MDRC) enclosure and powered directly from the KNX bus (12 mA), the GVS KNX Multifunctional Actuator with Secure combines durability, adaptability, and security for high-performance KNX building automation projects.
