KNX/DALI Gateway 1-Fold

Key Features

• KNX to DALI Integration: Enables seamless communication between KNX and DALI systems for unified lighting control and management.

• Single DALI Line Control: Supports up to 64 DALI devices per channel with broadcast and individual addressing capability.

• Comprehensive DALI Functions: Allows switching, dimming, brightness regulation, 16 group controls, and 16 scene controls for flexible configuration.

• Fault Detection & Monitoring: Provides automatic detection of lamp and ballast faults, enhancing system reliability and maintenance efficiency.

• Flexible Configuration: Compatible with DCA App in ETS or PC software for intuitive setup, addressing, and parameter adjustment.

• Compact DIN-Rail Design: Powered via KNX bus (12.5 mA) and housed in a 4SU MDRC module for simple DIN-rail mounting and integration.

Product Description

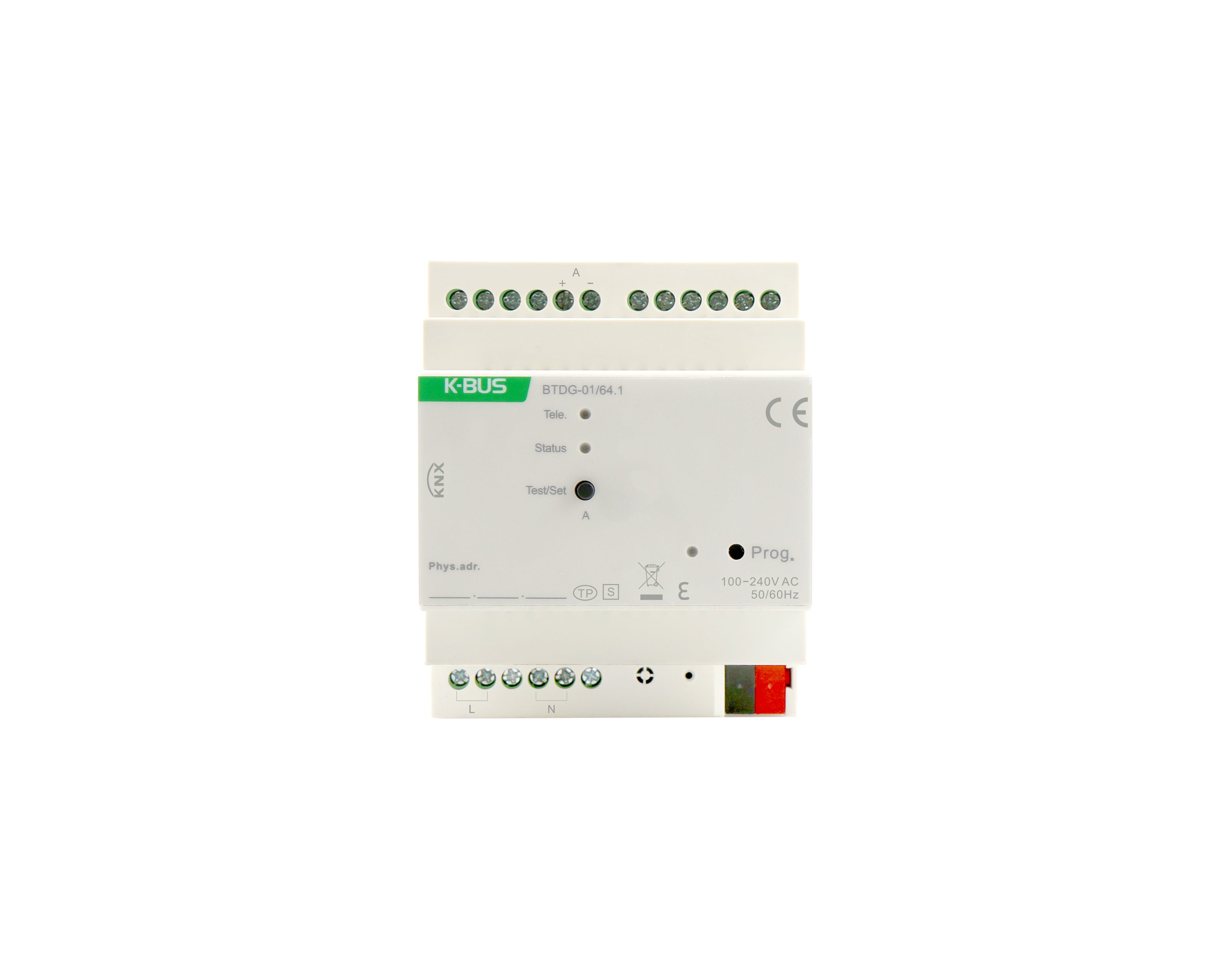

The GVS KNX/DALI Gateway, 1-Fold, 4SU MDRC is a high-performance interface designed to bridge KNX automation systems with DALI lighting networks, enabling seamless and intelligent lighting management. Supporting up to 64 DALI devices per channel, it allows full control of lighting functions such as switching, dimming, brightness adjustment, 16 group operations, and 16 scene recalls, ensuring advanced flexibility for both commercial and residential projects.

Equipped with broadcast and individual telegram functionality, the gateway simplifies large-scale lighting control while maintaining precise system feedback. Its built-in fault detection automatically identifies issues with lamps and ballasts, helping to reduce downtime and streamline maintenance.

Configuration is made simple through ETS DCA App or PC software, allowing efficient commissioning, parameter setting, and monitoring.

Compact and DIN-rail mounted (4SU), the device is powered directly from the KNX bus (12.5 mA), ensuring minimal wiring complexity and high reliability.

The GVS KNX/DALI Gateway – 1-Fold delivers a dependable, efficient, and scalable solution for integrating DALI lighting systems into KNX-based smart building environments.
