KNX Universal Dimmer 1- Fold

Key Features

• High-Performance Dimming Output: Supports leading and trailing edge phase dimming up to 300W per channel for a wide range of lighting loads.

• Flexible Voltage Range: Operates from 110–230V AC, 50–60Hz, ensuring compatibility with global power standards.

• Comprehensive KNX Functions: Includes switching, relative and absolute dimming, status response, scene control (up to 16 scenes), staircase lighting, flashing, delay, threshold, forced, and safety functions.

• Customisable Dimming Curve: Offers six preset dimming curves plus one user-defined option, configurable via ETS for precise lighting behaviour.

• Enhanced Usability Features: Manual operation and output indication functions with an integrated operating hours counter for maintenance tracking.

• Compact DIN-Rail Installation: 2SU MDRC housing, powered via the KNX bus (6 mA) for easy integration and efficient operation.

Product Description

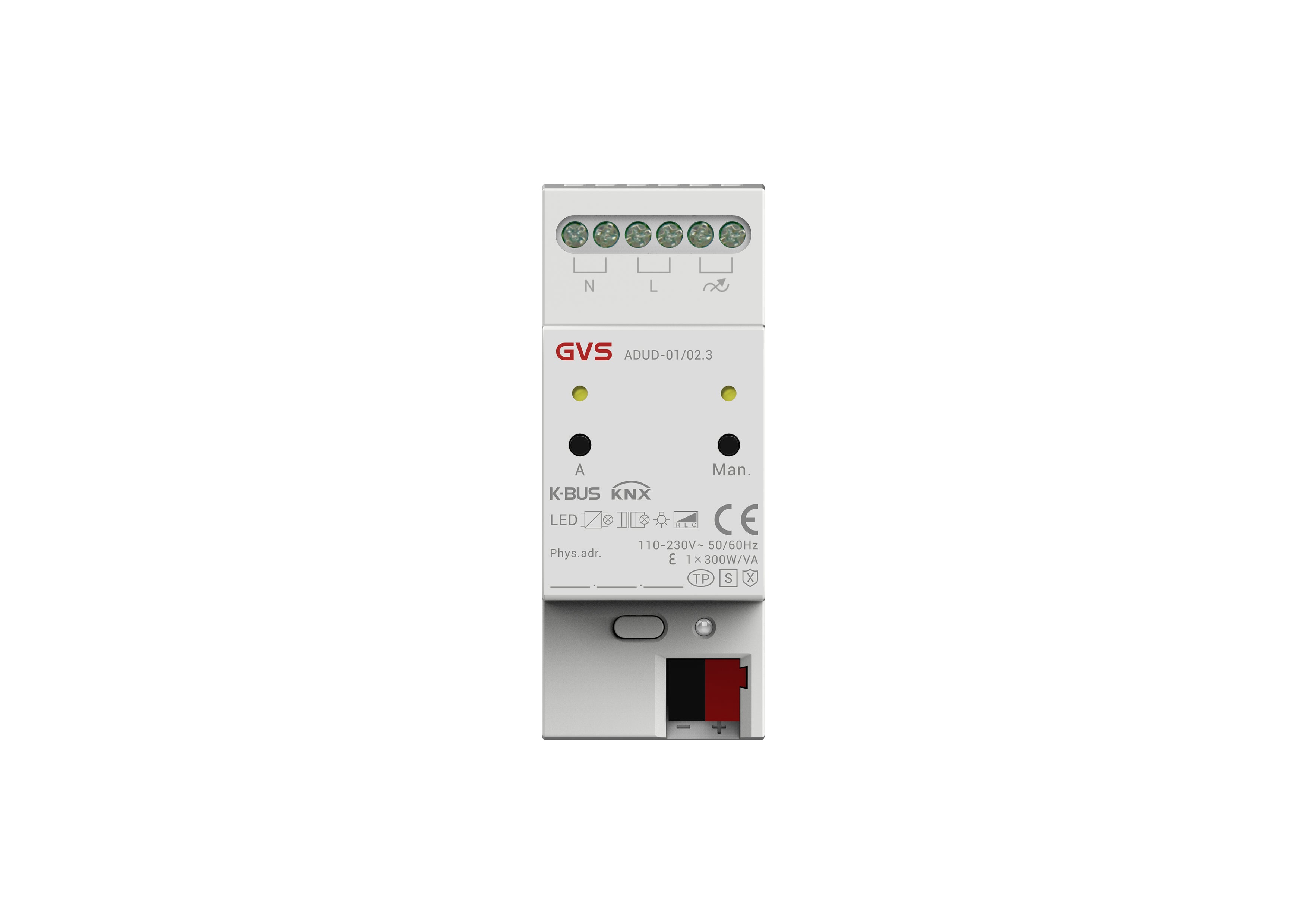

The GVS KNX Universal Dimming Actuator with Secure, 1-Fold, 2SU MDRC delivers precision, efficiency, and flexibility for advanced lighting control in KNX automation systems. Supporting leading and trailing edge dimming up to 300W per channel, it ensures smooth, flicker-free operation across diverse load types including LED, incandescent, and halogen luminaires.

With an input voltage range of 110–230V AC (50–60Hz), this actuator is suitable for use in both residential and commercial environments. It integrates a complete suite of KNX functions including switching, dimming (relative and absolute), scene control (up to 16 scenes), staircase lighting, delay, threshold, forced operation, and safety features, offering full control and flexibility for lighting automation.

The actuator’s six dimming curves plus one customisable curve enable fine-tuned lighting adjustments through ETS configuration. Additional features include manual operation, output indication, and an operating hours counter—allowing for easy maintenance and diagnostics.

Compact and DIN-rail mounted (2SU MDRC), the unit is powered directly via the KNX bus (6 mA) for simple integration and reliable performance.

The GVS KNX Universal Dimming Actuator with Secure – 1-Fold is the ideal solution for professional KNX lighting control projects demanding precision, energy efficiency, and smart adaptability.
